HomeProductsIntegrated Circuits (ICs)PMIC - Gate DriversMC33153PG

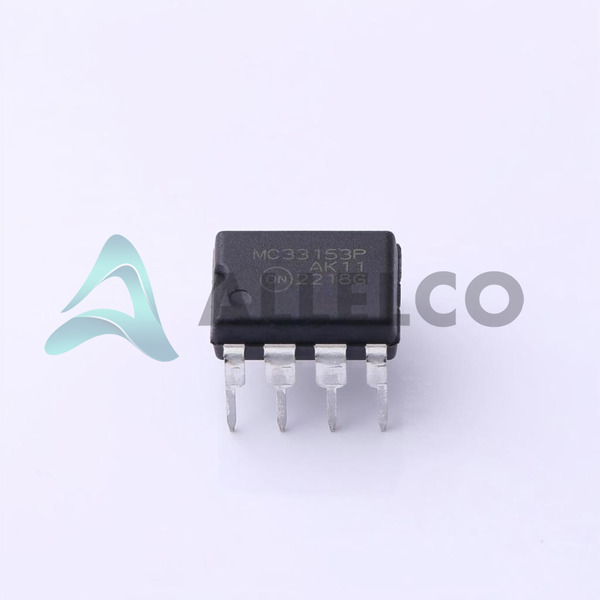

MC33153PG Image
MC33153PG Image - 1MC33153PG Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

MC33153PG - onsemi

Manufacturer Part Number
MC33153PG
Manufacturer
onsemi
Allelco Part Number
32D-MC33153PG
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC GATE DRVR LOW-SIDE 8DIP
Package
8-PDIP
Data sheet
1.MC33153PG.pdf ...

HTML Datasheet

MC33153.pdf

PCN Assembly/Origin

PDIP-8 Assembly 31/Jul/2013.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 21602
  • Unit Price: $0.697
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.697 $0.70
10+ $0.68 $6.80
50+ $0.635 $31.75
100+ $0.624 $62.40
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

MC33153PG Tech Specifications
onsemi - MC33153PG technical specifications, attributes, parameters and parts with similar specifications to onsemi - MC33153PG

Product Attribute Attribute Value
Manufacturer onsemi
Voltage - Supply 11V ~ 20V
Supplier Device Package 8-PDIP
Series -
Rise / Fall Time (Typ) 17ns, 17ns
Package / Case 8-DIP (0.300', 7.62mm)
Package Tube
Operating Temperature -40°C ~ 150°C (TJ)
Number of Drivers 1
Product Attribute Attribute Value
Mounting Type Through Hole
Logic Voltage - VIL, VIH 1.2V, 3.2V
Input Type Inverting
Gate Type IGBT, N-Channel MOSFET
Driven Configuration Low-Side
Current - Peak Output (Source, Sink) 1A, 2A
Channel Type Single
Base Product Number MC33153

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

MC33153PG

Manufacturer

onsemi

Introduction

Low-Side Single Channel Gate Driver for IGBT and N-Channel MOSFETs

Product Features and Performance

Drives IGBT and N-Channel MOSFET gates

Low-Side Channel Type

Single Driver Configuration

Logic Voltage - VIL, VIH at 1.2V, 3.2V

Peak Output Current Source, Sink at 1A, 2A

Fast Rise and Fall Times of 17ns

Product Advantages

Compatible with standard logic families

Optimized for low power loss

High peak current capability

Key Technical Parameters

Voltage Supply Range from 11V to 20V

Input is Inverting Type

Operating Temperature range from -40°C to 150°C

Through Hole Mounting Type

Quality and Safety Features

Built to handle rugged operational conditions

Meets industry-standard safety and quality norms

Compatibility

Designed for use with IGBT and N-Channel MOSFETs

Application Areas

Ideal for power management applications

Suitable for motor control circuits

Useful in SMPS and DC-DC converters

Product Lifecycle

Currently Active

Product has not been indicated as near discontinuation

Several Key Reasons to Choose This Product

Ensures low propagation delays

Capable of driving high-power devices

Durable under high-temperature operation

Ease of use in multiple applications

Reliable performance from a reputable manufacturer

Supports energy-efficient system designs

Parts with Similar Specifications
