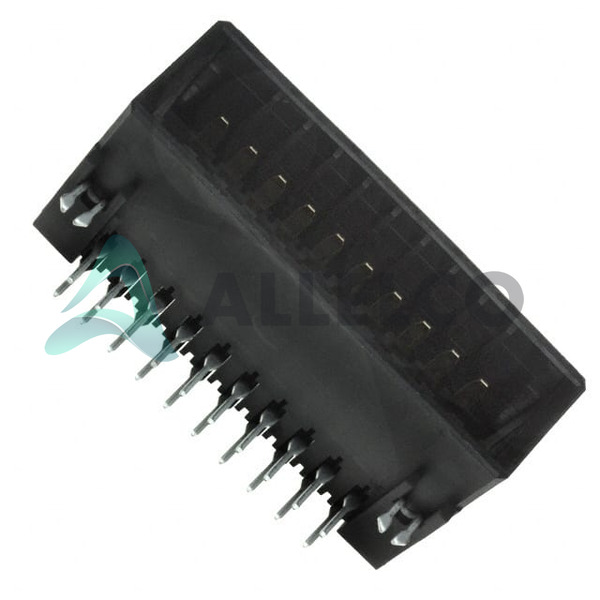

178308-3 Tech Specifications
TE Connectivity AMP Connectors - 178308-3 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity AMP Connectors - 178308-3
| Product Attribute |
Attribute Value
| |
| Manufacturer |
TE Connectivity |
|
| Voltage Rating |
250V |
|
| Termination |
Solder |
|
| Style |
Board to Board or Cable |
|
| Shrouding |
Shrouded - 4 Wall |
|
| Series |
Dynamic D-3100 |
|
| Row Spacing - Mating |
0.200' (5.08mm) |
|
| Pitch - Mating |
0.150' (3.81mm) |
|
| Package |
Bulk |
|
| Overall Contact Length |
- |
|
| Operating Temperature |
-55°C ~ 105°C |
|
| Number of Rows |
2 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
20 |
|
| Mounting Type |
Through Hole, Right Angle |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Thermoplastic, Polyester, Glass Filled |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.568' (14.43mm) |
|
| Insulation Color |
Black |
|
| Ingress Protection |
- |
|
| Features |
Board Lock |
|
| Fastening Type |
Detent Lock |
|
| Current Rating (Amps) |
- |
|
| Contact Type |
Tab |
|
| Contact Shape |
Rectangular |
|
| Contact Material |
Copper Alloy |
|
| Contact Length - Post |
0.150' (3.81mm) |
|
| Contact Length - Mating |
- |
|
| Contact Finish Thickness - Post |
- |
|
| Contact Finish Thickness - Mating |
30.0µin (0.76µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Header |
|
| Base Product Number |
178308 |
|
| Applications |
General Purpose, Industrial |
|
