Specifications
227755-2 Tech Specifications
TE Connectivity AMP Connectors - 227755-2 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity AMP Connectors - 227755-2
| Product Attribute |
Attribute Value
| |
| Manufacturer |
TE Connectivity |
|
| Voltage Rating |
500 V |
|
| Shield Termination |
Solder Tag |
|
| Series |
- |
|
| Package |
Bulk |
|
| Operating Temperature |
-65°C ~ 165°C |
|
| Number of Ports |
1 |
|
| Mounting Type |
Panel Mount |
|
| Mounting Feature |
Bulkhead - Rear Side Nut |
|
| Mating Cycles |
500 |
|
| Insertion Loss |
- |
|
| Ingress Protection |
- |
|
| Includes |

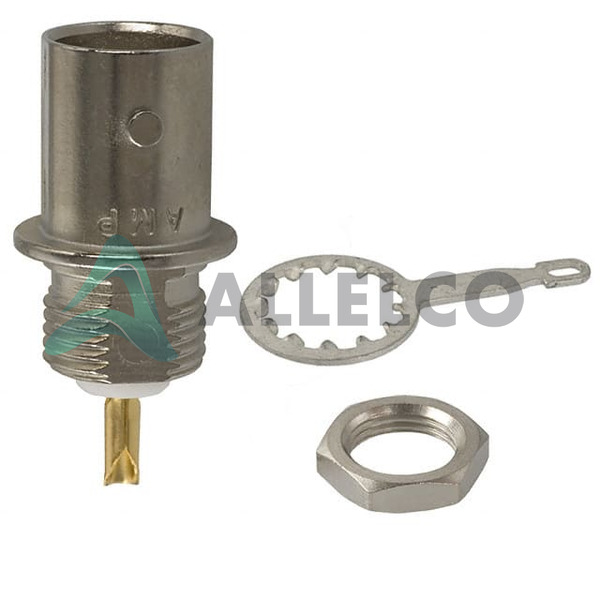

3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
|
| Impedance |
50Ohm |
|
| Product Attribute |
Attribute Value
| |
| Housing Color |
Silver |
|
| Frequency - Max |
4 GHz |
|
| Features |
Extended Insulation |
|
| Fastening Type |
Bayonet Lock |
|
| Dielectric Material |
Polybutylene Terephthalate (PBT) |
|
| Contact Termination |
Solder Cup |
|
| Connector Type |
Jack, Female Socket |
|
| Connector Style |
BNC |
|
| Center Contact Plating |
Gold |
|
| Center Contact Material |
Phosphor Bronze |
|
| Cable Group |
- |
|
| Body Material |
Zinc |
|
| Body Finish |
Nickel |
|
| Base Product Number |
227755 |
|
