HomeProductsConnectors, InterconnectsRectangular Connectors - Headers, Male Pins2338245-2

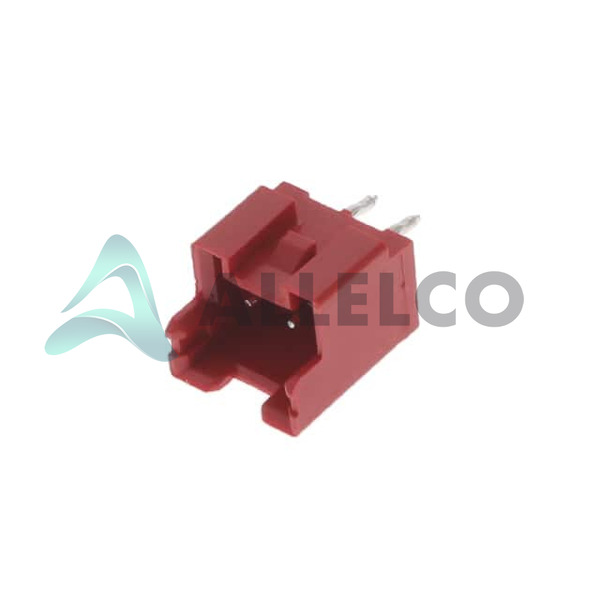

2338245-2 Image
2338245-2 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

2338245-2 - TE Connectivity AMP Connectors

Manufacturer Part Number
2338245-2
Manufacturer
TE Connectivity
Allelco Part Number
98D-2338245-2
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
EP2.5 HDR 2P VERT BOSS RED UL
Package
Bulk
Data sheet
1.2338245-2.pdf ...

Datasheets

2338245 Drawing.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 14374
  • Unit Price: $0.108
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.108 $0.11
200+ $0.043 $8.60
600+ $0.042 $25.20
1200+ $0.041 $49.20
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

2338245-2 Tech Specifications
TE Connectivity AMP Connectors - 2338245-2 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity AMP Connectors - 2338245-2

Product Attribute Attribute Value
Manufacturer TE Connectivity
Voltage Rating -
Termination Kinked Pin, Solder
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Series Economy Power 2.5
Row Spacing - Mating -
Pitch - Mating 0.098" (2.50mm)
Package Bulk
Overall Contact Length -
Operating Temperature -
Number of Rows 1
Number of Positions Loaded All
Number of Positions 2
Mounting Type Through Hole
Material Flammability Rating UL94 V-0
Mated Stacking Heights -
Insulation Material Thermoplastic
Product Attribute Attribute Value
Insulation Height 0.346" (8.80mm)
Insulation Color Red
Ingress Protection -
Features Board Guide
Fastening Type Locking Ramp
Current Rating (Amps) -
Contact Type Male Pin
Contact Shape Circular
Contact Material Brass
Contact Length - Post 0.134" (3.40mm)
Contact Length - Mating 0.142" (3.61mm)
Contact Finish Thickness - Post -
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Finish - Mating Tin
Connector Type Header
Base Product Number 2338245
Applications -

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040

Parts with Similar Specifications

The three parts on the right have similar specifications to TE Connectivity AMP Connectors 2338245-2

Product Attribute 2338244-2 2338245-7 2338245-4 2338245-6
Part Number 2338244-2 2338245-7 2338245-4 2338245-6
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Contact Finish - Mating - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Insulation Material - - - -
Voltage Rating - - - -
Contact Finish Thickness - Mating - - - -
Contact Length - Post - - - -
Mated Stacking Heights - - - -
Ingress Protection - - - -
Contact Type - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Insulation Height - - - -
Connector Type - - - -
Insulation Color - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Termination - - - -
Series - - - -
Pitch - Mating - - - -
Number of Positions Loaded - - - -
Fastening Type - - - -
Overall Contact Length - - - -
Features - - - Simultaneous Sampling
Contact Finish - Post - - - -
Applications - - - -
Row Spacing - Mating - - - -
Contact Material - - - -
Contact Finish Thickness - Post - - - -
Style - - - -
Number of Rows - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Material Flammability Rating - - - -
Contact Length - Mating - - - -
Number of Positions - - - -
Current Rating (Amps) - - - -
Shrouding - - - -
Contact Shape - - - -
