Specifications

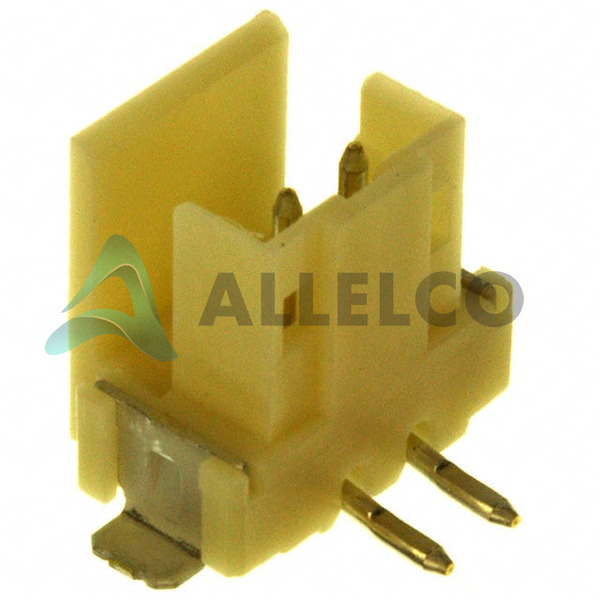

292174-2 Tech Specifications
TE Connectivity AMP Connectors - 292174-2 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity AMP Connectors - 292174-2
| Product Attribute |
Attribute Value
| |
| Manufacturer |
TE Connectivity |
|
| Voltage Rating |
125VAC |
|
| Termination |
Solder |
|
| Style |
Board to Cable/Wire |
|
| Shrouding |
Shrouded - 4 Wall |
|
| Series |
CT |
|
| Row Spacing - Mating |
- |
|
| Pitch - Mating |
0.079" (2.00mm) |
|
| Package |
Tape & Reel (TR) |
|
| Overall Contact Length |
- |
|
| Operating Temperature |
- |
|
| Number of Rows |
1 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
2 |
|
| Mounting Type |
Surface Mount |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Polyamide (PA), Nylon, Glass Filled |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.307" (7.80mm) |
|
| Insulation Color |
Natural |
|
| Ingress Protection |
- |
|
| Features |
Board Guide, Solder Retention |
|
| Fastening Type |
Detent Lock |
|
| Current Rating (Amps) |
Varies by Wire Gauge |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Square |
|
| Contact Material |
Brass |
|
| Contact Length - Post |
- |
|
| Contact Length - Mating |
0.177" (4.50mm) |
|
| Contact Finish Thickness - Post |
- |
|
| Contact Finish Thickness - Mating |
- |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Tin |
|
| Connector Type |
Header |
|
| Base Product Number |
292174 |
|
| Applications |
General Purpose |
|
