Specifications

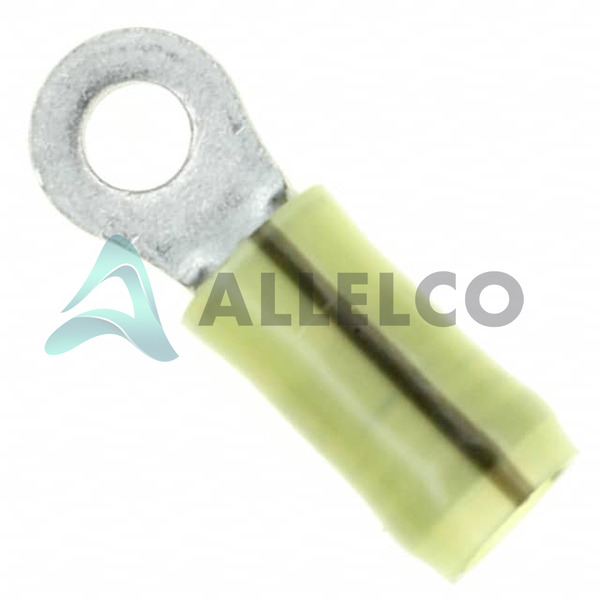

320627 Tech Specifications
TE Connectivity AMP Connectors - 320627 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity AMP Connectors - 320627
| Product Attribute |
Attribute Value
| |
| Manufacturer |
TE Connectivity |
|
| Wire Gauge |
14-16 AWG |
|
| Width - Outer Edges |
0.343' (8.71mm) |
|
| Thickness |
0.048' (1.22mm) |
|
| Termination |
Crimp |
|
| Terminal Type |
Circular |
|
| Stud/Tab Size |
8 Stud |
|
| Series |
PIDG |
|
| Package |
Bulk |
|
| Mounting Type |
Free Hanging (In-Line) |
|
| Product Attribute |
Attribute Value
| |
| Material - Insulation |
Polyamide (PA), Nylon |
|
| Length - Overall |
1.046' (26.57mm) |
|
| Insulation Diameter |
0.150' ~ 0.230' (3.81mm ~ 5.84mm) |
|
| Insulation |
Insulated |
|
| Features |
Heavy Duty, Serrated Termination |
|
| Contact Material |
Copper |
|
| Contact Finish |
Tin |
|
| Color |
Yellow, Black Stripe |
|
| Base Product Number |
3206 |
|
