Specifications

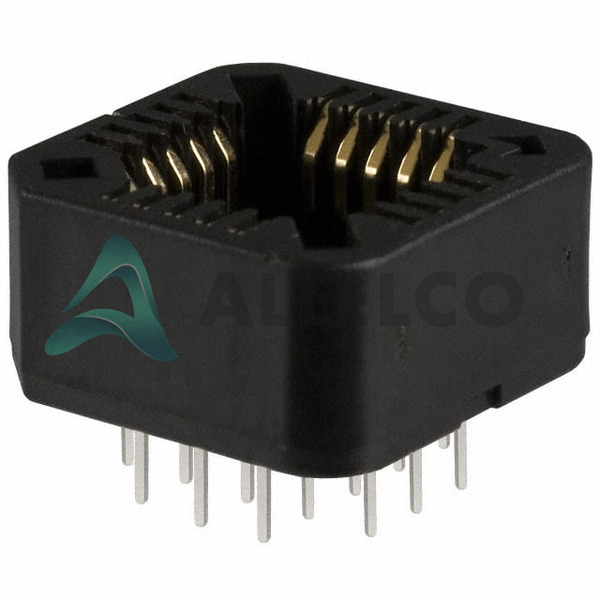

A-CCS20-G-R Tech Specifications
Assmann WSW Components - A-CCS20-G-R technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components - A-CCS20-G-R
| Product Attribute |
Attribute Value
| |
| Manufacturer |
ASSMANN WSW Components |
|
| Type |
PLCC |
|
| Termination Post Length |
0.130" (3.30mm) |
|
| Termination |
Solder |
|
| Series |
- |
|
| Pitch - Post |
0.100" (2.54mm) |
|
| Pitch - Mating |
0.050" (1.27mm) |
|
| Package |
Tube |
|
| Operating Temperature |
-55°C ~ 105°C |
|
| Number of Positions or Pins (Grid) |
20 (4 x 5) |
|
| Mounting Type |
Through Hole |
|
| Product Attribute |
Attribute Value
| |
| Material Flammability Rating |
UL94 V-0 |
|
| Housing Material |
Polybutylene Terephthalate (PBT), Glass Filled |
|
| Features |
Closed Frame |
|
| Current Rating (Amps) |
1 A |
|
| Contact Resistance |
30mOhm |
|
| Contact Material - Post |
Phosphor Bronze |
|
| Contact Material - Mating |
Phosphor Bronze |
|
| Contact Finish Thickness - Post |
- |
|
| Contact Finish Thickness - Mating |
- |
|
| Contact Finish - Post |
Gold |
|
| Contact Finish - Mating |
Gold |
|
