HomeProductsConnectors, InterconnectsSockets for ICs, TransistorsA-CCS68-Z-SM-R

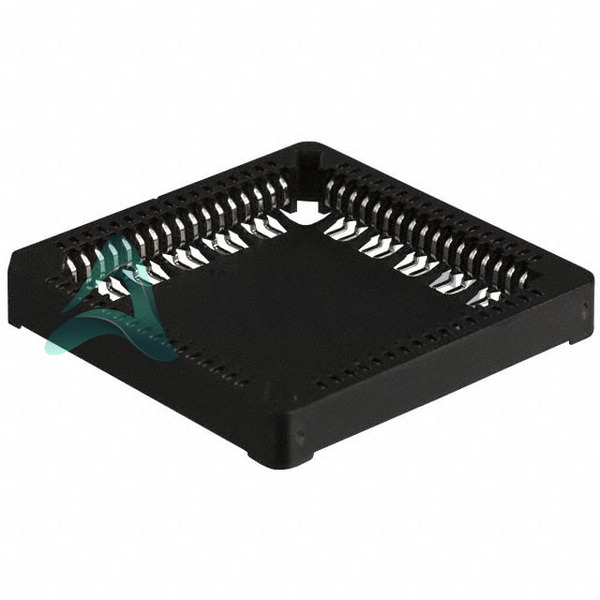

A-CCS68-Z-SM-R Image
A-CCS68-Z-SM-R Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

A-CCS68-Z-SM-R - Assmann WSW Components

Manufacturer Part Number
A-CCS68-Z-SM-R
Manufacturer
ASSMANN WSW Components
Allelco Part Number
98D-A-CCS68-Z-SM-R
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
CONN SOCKET PLCC 68POS TIN
Package
Tube
Data sheet
1.A-CCS68-Z-SM-R.pdf ...
Compare
Our certification
In stock: 28953

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

A-CCS68-Z-SM-R Tech Specifications
Assmann WSW Components - A-CCS68-Z-SM-R technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components - A-CCS68-Z-SM-R

Product Attribute Attribute Value
Manufacturer ASSMANN WSW Components
Type PLCC
Termination Post Length 0.130' (3.30mm)
Termination Solder
Series -
Pitch - Post 0.050' (1.27mm)
Pitch - Mating 0.050' (1.27mm)
Package Tube
Operating Temperature -55°C ~ 105°C
Number of Positions or Pins (Grid) 68 (4 x 17)
Mounting Type Surface Mount
Product Attribute Attribute Value
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Features Closed Frame
Current Rating (Amps) 1 A
Contact Resistance 30mOhm
Contact Material - Post Phosphor Bronze
Contact Material - Mating Phosphor Bronze
Contact Finish Thickness - Post 150.0µin (3.81µm)
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Finish - Post Tin
Contact Finish - Mating Tin

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040

Parts with Similar Specifications

The three parts on the right have similar specifications to Assmann WSW Components A-CCS68-Z-SM-R

Product Attribute A-CCS84-Z-SM-R A-CCS68-Z-SM A-CCS52-Z-SM-R A-CCS84-Z-SM
Part Number A-CCS84-Z-SM-R A-CCS68-Z-SM A-CCS52-Z-SM-R A-CCS84-Z-SM
Manufacturer Assmann WSW Components Assmann WSW Components Assmann WSW Components Assmann WSW Components
Termination - - - -
Features - - - Simultaneous Sampling
Contact Finish - Post - - - -
Number of Positions or Pins (Grid) - - - -
Contact Material - Mating - - - -
Contact Resistance - - - -
Contact Finish - Mating - - - -
Pitch - Mating - - - -
Type - - - -
Termination Post Length - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Contact Finish Thickness - Post - - - -
Contact Material - Post - - - -
Housing Material - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Pitch - Post - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Series - - - -
Current Rating (Amps) - - - -
Material Flammability Rating - - - -
Contact Finish Thickness - Mating - - - -
