HomeProductsConnectors, InterconnectsD-Sub Connector AssembliesA-DSF 15LPIII/Z

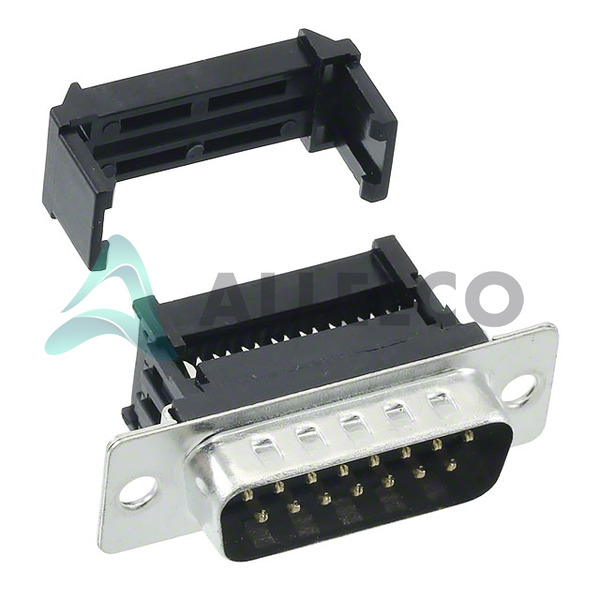

A-DSF 15LPIII/Z Image
A-DSF 15LPIII/Z Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

A-DSF 15LPIII/Z - ASSMANN WSW Components

Manufacturer Part Number
A-DSF 15LPIII/Z
Manufacturer
ASSMANN WSW Components
Allelco Part Number
98D-A-DSF 15LPIII/Z
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
CONN D-SUB PLUG 15POS STR IDC
Package
Data sheet
1.A-DSF 15LPIII/Z.pdf ...
RoHs Status
Lead free / RoHS Compliant
Compare
Our certification
In stock: 37103
  • Unit Price: $1.106
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.106 $1.11
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

A-DSF 15LPIII/Z Tech Specifications
ASSMANN WSW Components - A-DSF 15LPIII/Z technical specifications, attributes, parameters and parts with similar specifications to ASSMANN WSW Components - A-DSF 15LPIII/Z

Product Attribute Attribute Value
Manufacturer ASSMANN WSW Components
Wire Gauge 26-28 AWG
Voltage Rating 250V
Termination IDC, Ribbon Cable
Shell Size, Connector Layout 2 (DA, A)
Shell Material, Finish Steel, Tin Plated
Series -
Packaging Tray
Other Names A-DSF-15LPIII/Z
A-DSF-15LPIII/Z-ND
AE11068-ND
HHMM15H
Operating Temperature -55°C ~ 105°C
Number of Rows 2
Number of Positions 15
Mounting Type Free Hanging (In-Line)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Flammability Rating UL94 V-0
Manufacturer Standard Lead Time 20 Weeks
Product Attribute Attribute Value
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Ingress Protection -
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature Housing/Shell (Unthreaded)
Features Feed Through, Grounding Indents, Strain Relief
Detailed Description 15 Position D-Sub Plug, Male Pins Connector
Current Rating 3A
Contact Type Signal
Contact Material Copper Alloy
Contact Form -
Contact Finish Thickness Flash
Contact Finish Gold
Connector Type Plug, Male Pins
Connector Style D-Sub
Color Black
Backset Spacing -

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status Lead free / RoHS Compliant

Parts with Similar Specifications

The three parts on the right have similar specifications to ASSMANN WSW Components A-DSF 15LPIII/Z

Product Attribute A-DSF 15 LPIII/Z-UNC A-DSF 15 LPIII/Z A-DSF 15LPIII/Z-UNC A-DSF 15 LPIII/FP
Part Number A-DSF 15 LPIII/Z-UNC A-DSF 15 LPIII/Z A-DSF 15LPIII/Z-UNC A-DSF 15 LPIII/FP
Manufacturer Assmann WSW Components Assmann WSW Components ASSMANN WSW Components Assmann WSW Components
Connector Type - - - -
Current Rating - - - -
Other Names - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Contact Type - - - -
Detailed Description - - - -
Voltage Rating - - - -
Backset Spacing - - - -
Features - - - Simultaneous Sampling
Contact Finish - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Flange Feature - - - -
Number of Positions - - - -
Moisture Sensitivity Level (MSL) - - - -
Series - - - -
Termination - - - -
Contact Finish Thickness - - - -
Shell Material, Finish - - - -
Lead Free Status / RoHS Status - - - -
Ingress Protection - - - -
Housing Material - - - -
Color - - - -
Wire Gauge - - - -
Contact Form - - - -
Shell Size, Connector Layout - - - -
Packaging - - - -
Connector Style - - - -
Manufacturer Standard Lead Time - - - -
Material Flammability Rating - - - -
Contact Material - - - -
Number of Rows - - - -

A-DSF 15LPIII/Z Datasheet PDF

Download A-DSF 15LPIII/Z pdf datasheets and ASSMANN WSW Components documentation for A-DSF 15LPIII/Z - ASSMANN WSW Components.

HTML Datasheet
