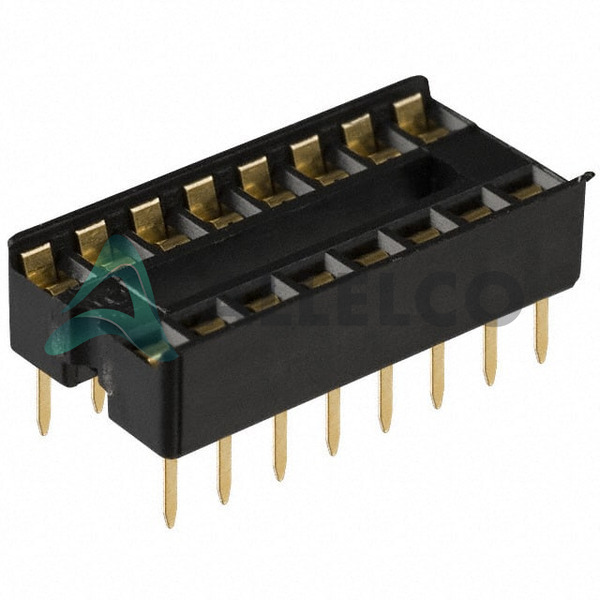

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

A16-LCG-T-R - Assmann WSW Components

Name: Assmann WSW Components A16-LCG-T-R
Brand: Assmann WSW Components
SKU: A16-LCG-T-R
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer Part Number: A16-LCG-T-R

Manufacturer: ASSMANN WSW Components

Allelco Part Number: 98D-A16-LCG-T-R

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: CONN IC DIP SOCKET 16POS GOLD

Package: Tube

Data sheet: 1.A16-LCG-T-R.pdf ...

Datasheets
Cylindrical Battery Holders.pdf

PCN Obsolescence/ EOL
Cylindrical Battery Holders.pdf

~~Compare~~

Our certification

In stock: 35916

EXPRESS OPTION

Payment method

Our certification

Specifications

A16-LCG-T-R Tech Specifications
Assmann WSW Components - A16-LCG-T-R technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components - A16-LCG-T-R

Product Attribute	Attribute Value
Manufacturer	ASSMANN WSW Components
Type	DIP, 0.3' (7.62mm) Row Spacing
Termination Post Length	0.130' (3.30mm)
Termination	Solder
Series	-
Pitch - Post	0.100' (2.54mm)
Pitch - Mating	0.100' (2.54mm)
Package	Tube
Operating Temperature	-55°C ~ 105°C
Number of Positions or Pins (Grid)	16 (2 x 8)
Mounting Type	Through Hole

Product Attribute	Attribute Value
Material Flammability Rating	UL94 V-0
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Open Frame
Current Rating (Amps)	1 A
Contact Resistance	30mOhm
Contact Material - Post	-
Contact Material - Mating	-
Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-
Contact Finish - Post	Gold
Contact Finish - Mating	Gold

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040

Parts with Similar Specifications

The three parts on the right have similar specifications to Assmann WSW Components A16-LCG-T-R

Product Attribute
Part Number	A16-LCG-T-R	A16-LC-TR	A16-LCG	A16-TAA-2
Manufacturer	Assmann WSW Components	Assmann WSW Components	Assmann WSW Components	Omron Automation and Safety
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT)	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Panel Mount, Front
Material Flammability Rating	UL94 V-0	UL94 V-0	-	-
Contact Finish - Post	Gold	Tin	Gold	-
Termination Post Length	0.130' (3.30mm)	0.124" (3.15mm)	-	-
Contact Material - Post	-	Phosphor Bronze	-	-
Current Rating (Amps)	1 A	1 A	-	5A (AC)
Contact Finish Thickness - Mating	-	-	-	-
Contact Finish - Mating	Gold	Tin	Gold	-
Series	-	-	-	A16
Features	Open Frame	Open Frame	Open Frame	-
Contact Finish Thickness - Post	-	-	-	-
Pitch - Post	0.100' (2.54mm)	0.100" (2.54mm)	0.100' (2.54mm)	-
Contact Resistance	30mOhm	30mOhm	-	-
Contact Material - Mating	-	Phosphor Bronze	-	-
Termination	Solder	Solder	-	-
Package	Tube	Bag	-	Bulk
Operating Temperature	-55°C ~ 105°C	-55°C ~ 85°C	-	-10°C ~ 55°C
Number of Positions or Pins (Grid)	16 (2 x 8)	16 (2 x 8)	16 (2 x 8)	-
Type	DIP, 0.3' (7.62mm) Row Spacing	DIP, 0.3" (7.62mm) Row Spacing	DIP, 0.3' (7.62mm) Row Spacing	Standard
Pitch - Mating	0.100' (2.54mm)	0.100" (2.54mm)	0.100' (2.54mm)	-

A16-LCG-T-R Datasheet PDF

Download A16-LCG-T-R pdf datasheets and Assmann WSW Components documentation for A16-LCG-T-R - Assmann WSW Components.

Datasheets: Cylindrical Battery Holders.pdf
PCN Obsolescence/ EOL: Cylindrical Battery Holders.pdf
