HomeProductsConnectors, InterconnectsSockets for ICs, TransistorsA20-LCG-T-R

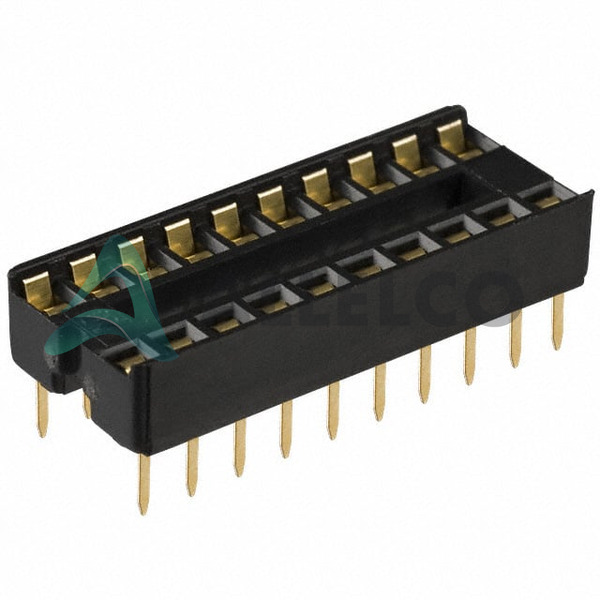

A20-LCG-T-R Image
A20-LCG-T-R Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

A20-LCG-T-R - Assmann WSW Components

Manufacturer Part Number
A20-LCG-T-R
Manufacturer
ASSMANN WSW Components
Allelco Part Number
98D-A20-LCG-T-R
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
CONN IC DIP SOCKET 20POS GOLD
Package
Tube
Data sheet
1.A20-LCG-T-R.pdf ...

PCN Obsolescence/ EOL

Cylindrical Battery Holders.pdf
Compare
Our certification
In stock: 40794

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

A20-LCG-T-R Tech Specifications
Assmann WSW Components - A20-LCG-T-R technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components - A20-LCG-T-R

Product Attribute Attribute Value
Manufacturer ASSMANN WSW Components
Type DIP, 0.3' (7.62mm) Row Spacing
Termination Post Length 0.130' (3.30mm)
Termination Solder
Series -
Pitch - Post 0.100' (2.54mm)
Pitch - Mating 0.100' (2.54mm)
Package Tube
Operating Temperature -55°C ~ 105°C
Number of Positions or Pins (Grid) 20 (2 x 10)
Mounting Type Through Hole
Product Attribute Attribute Value
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Features Open Frame
Current Rating (Amps) 1 A
Contact Resistance 30mOhm
Contact Material - Post -
Contact Material - Mating -
Contact Finish Thickness - Post -
Contact Finish Thickness - Mating -
Contact Finish - Post Gold
Contact Finish - Mating Gold

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040

Parts with Similar Specifications

The three parts on the right have similar specifications to Assmann WSW Components A20-LCG-T-R

Product Attribute A20-LCG-T-R A20-LCG A20-DEBIAN-SD A20-432-262-903
Part Number A20-LCG-T-R A20-LCG A20-DEBIAN-SD A20-432-262-903
Manufacturer Assmann WSW Components Assmann WSW Components Olimex LTD EDAC Inc.
Number of Positions or Pins (Grid) 20 (2 x 10) 20 (2 x 10) - -
Current Rating (Amps) 1 A - - -
Pitch - Post 0.100' (2.54mm) 0.100' (2.54mm) - -
Features Open Frame Open Frame - Board Lock
Contact Finish Thickness - Mating - - - -
Contact Finish Thickness - Post - - - -
Contact Resistance 30mOhm - - -
Termination Post Length 0.130' (3.30mm) - - -
Contact Material - Post - - - -
Package Tube - Bulk Bulk
Series - - - A20
Operating Temperature -55°C ~ 105°C - - -
Termination Solder - - Solder
Material Flammability Rating UL94 V-0 - - -
Contact Material - Mating - - - -
Housing Material Polybutylene Terephthalate (PBT), Glass Filled - - Polyamide (PA46), Nylon 4/6
Pitch - Mating 0.100' (2.54mm) 0.100' (2.54mm) - -
Contact Finish - Post Gold Gold - -
Type DIP, 0.3' (7.62mm) Row Spacing DIP, 0.3' (7.62mm) Row Spacing - -
Mounting Type Through Hole Through Hole - Through Hole
Contact Finish - Mating Gold Gold - -
