Specifications

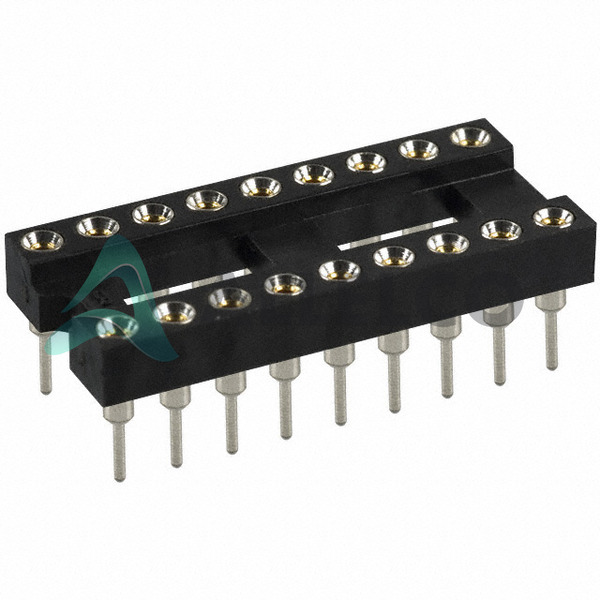

AR18-HZL/07-TT-R Tech Specifications
ASSMANN WSW Components - AR18-HZL/07-TT-R technical specifications, attributes, parameters and parts with similar specifications to ASSMANN WSW Components - AR18-HZL/07-TT-R
| Product Attribute |
Attribute Value
| |
| Manufacturer |
ASSMANN WSW Components |
|
| Type |
DIP, 0.3" (7.62mm) Row Spacing |
|
| Termination Post Length |
- |
|
| Termination |
Solder |
|
| Series |
- |
|
| Pitch - Post |
0.100" (2.54mm) |
|
| Pitch - Mating |
0.100" (2.54mm) |
|
| Packaging |
Tube |
|
| Other Names |
AE10037 |
|
| Operating Temperature |
-40°C ~ 105°C |
|
| Number of Positions or Pins (Grid) |
18 (2 x 9) |
|
| Mounting Type |
Through Hole |
|
| Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
|
| Product Attribute |
Attribute Value
| |
| Material Flammability Rating |
UL94 V-0 |
|
| Manufacturer Standard Lead Time |
20 Weeks |
|
| Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|
| Housing Material |
Thermoplastic, Polyester |
|
| Features |
Open Frame |
|
| Current Rating |
3A |
|
| Contact Resistance |
4 mOhm |
|
| Contact Material - Post |
Beryllium Copper |
|
| Contact Material - Mating |
Beryllium Copper |
|
| Contact Finish Thickness - Post |
200.0µin (5.08µm) |
|
| Contact Finish Thickness - Mating |
30.0µin (0.76µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Gold |
|
