Specifications

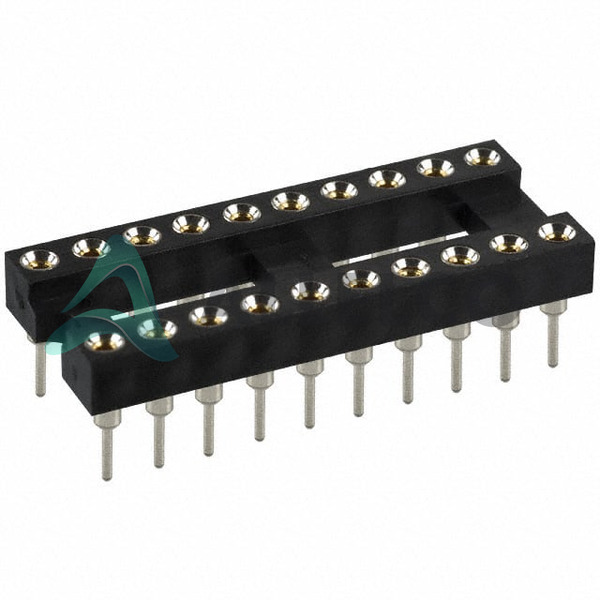

AR20-HZL/01-TT-R Tech Specifications
Assmann WSW Components - AR20-HZL/01-TT-R technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components - AR20-HZL/01-TT-R
| Product Attribute |
Attribute Value
| |
| Manufacturer |
ASSMANN WSW Components |
|
| Type |
DIP, 0.3" (7.62mm) Row Spacing |
|
| Termination Post Length |
- |
|
| Termination |
Solder |
|
| Series |
- |
|
| Pitch - Post |
0.100" (2.54mm) |
|
| Pitch - Mating |
0.100" (2.54mm) |
|
| Package |
Tube |
|
| Operating Temperature |
-40°C ~ 105°C |
|
| Number of Positions or Pins (Grid) |
20 (2 x 10) |
|
| Mounting Type |
Through Hole |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Product Attribute |
Attribute Value
| |
| Housing Material |
Thermoplastic, Polyester |
|
| Features |
Open Frame |
|
| Current Rating (Amps) |
3 A |
|
| Contact Resistance |
4mOhm |
|
| Contact Material - Post |
Beryllium Copper |
|
| Contact Material - Mating |
Beryllium Copper |
|
| Contact Finish Thickness - Post |
200.0µin (5.08µm) |
|
| Contact Finish Thickness - Mating |
10.0µin (0.25µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Gold |
|
| Base Product Number |
AR20-HZ |
|
