Specifications

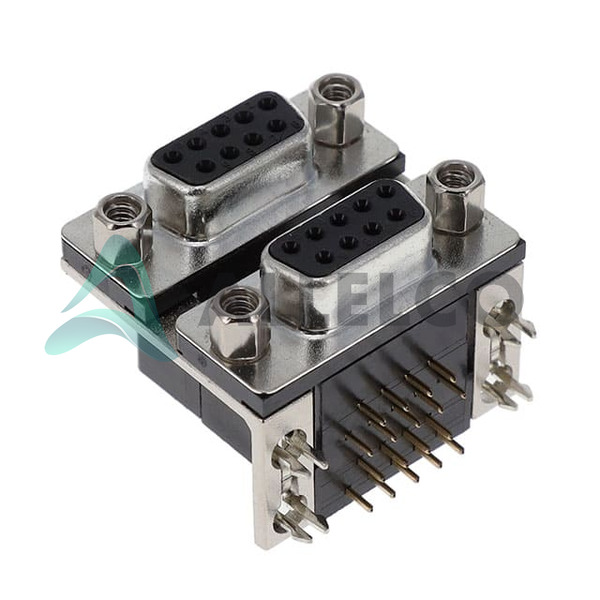

ASUB-277-09TP30 Tech Specifications
Assmann WSW Components - ASUB-277-09TP30 technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components - ASUB-277-09TP30
| Product Attribute |
Attribute Value
| |
| Manufacturer |
ASSMANN WSW Components |
|
| Wire Gauge |
- |
|
| Voltage Rating |
250V |
|
| Termination |
Solder |
|
| Shell Size, Connector Layout |
1 (DE, E); 1 (DE, E) |
|
| Shell Material, Finish |
Steel |
|
| Series |
- |
|
| Primary Material |
Metal |
|
| Package |
Tray |
|
| Operating Temperature |
-55°C ~ 105°C |
|
| Number of Rows |
2, 2 |
|
| Number of Positions |
9, 9 |
|
| Mounting Type |
Through Hole, Right Angle |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Product Attribute |
Attribute Value
| |
| Ingress Protection |
- |
|
| Flange Feature |
Housing/Shell (4-40) |
|
| Features |
Board Lock |
|
| Dielectric Material |
Polybutylene Terephthalate (PBT) |
|
| Current Rating (Amps) |
3A |
|
| Contact Type |
Signal |
|
| Contact Material |
Copper Alloy |
|
| Contact Form |
- |
|
| Contact Finish Thickness |
Flash |
|
| Contact Finish |
Gold |
|
| Connector Type |
Receptacle, Female Sockets |
|
| Connector Style |
D-Sub - Stacked |
|
| Color |
Black |
|
| Backset Spacing |
- |
|
