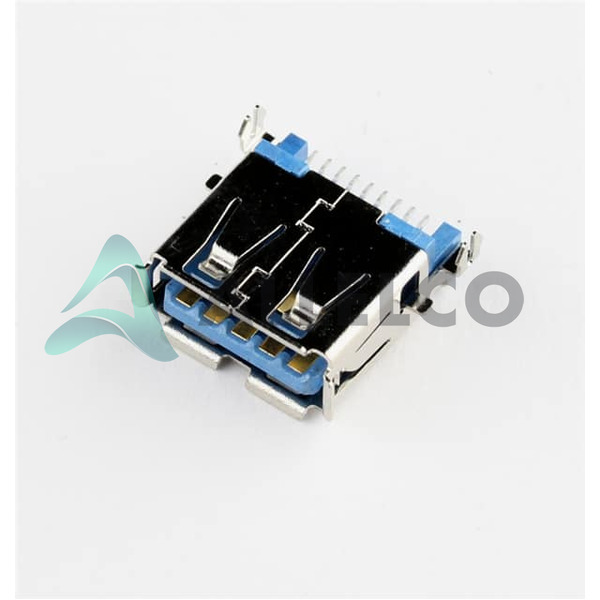

AUSB3-AFN-PSR2 - Assmann WSW Components

Manufacturer Part Number: AUSB3-AFN-PSR2

Manufacturer: ASSMANN WSW Components

Allelco Part Number: 98D-AUSB3-AFN-PSR2

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: CONN RCPT USB3.2 TYPEA 9POS SMD

Package: Tape & Reel (TR)

Data sheet: 1.AUSB3-AFN-PSR2.pdf ...

Datasheets
AUSB3-AFN-PSxx Drawing.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 30666

EXPRESS OPTION

Payment method

Our certification

Specifications

AUSB3-AFN-PSR2 Tech Specifications
Assmann WSW Components - AUSB3-AFN-PSR2 technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components - AUSB3-AFN-PSR2

Product Attribute	Attribute Value
Manufacturer	ASSMANN WSW Components
Voltage - Rated	-
Termination	Solder
Specifications	USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Shielding	Shielded
Shell/Shielding Material	Brass
Series	-
Package	Tape & Reel (TR)
Operating Temperature	-55°C ~ 85°C
Number of Ports	1
Number of Contacts	9

Product Attribute	Attribute Value
Mounting Type	Surface Mount, Right Angle; Through Hole
Mounting Feature	Horizontal
Mating Cycles	5000
Material Flammability Rating	UL94 V-0
Insulation Color	Blue
Ingress Protection	-
Gender	Receptacle
Features	-
Current Rating (Amps)	0.25A, 1.8A
Contact Finish	Gold
Connector Type	USB-A (USB TYPE-A)

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040

Parts with Similar Specifications

The three parts on the right have similar specifications to Assmann WSW Components AUSB3-AFN-PSR2

Product Attribute
Part Number	AUSB3-AFN-HSR2	AUSB3-AFN-PSR1	AUSB3-AFN-BTR	AUSB1-DMN-HSR2
Manufacturer	Assmann WSW Components	Assmann WSW Components	Assmann WSW Components	Assmann WSW Components
Ingress Protection	-	-	-	-
Termination	-	-	-	-
Insulation Color	-	-	-	-
Material Flammability Rating	-	-	-	-
Mating Cycles	-	-	-	-
Shielding	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Connector Type	-	-	-	-
Shell/Shielding Material	-	-	-	-
Number of Contacts	-	-	-	-
Specifications	-	-	-	-
Contact Finish	-	-	-	-
Number of Ports	-	-	-	-
Features	-	-	-	Simultaneous Sampling
Mounting Feature	-	-	-	-
Voltage - Rated	-	-	-	-
Current Rating (Amps)	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Gender	-	-	-	-
Series	-	-	-	-

AUSB3-AFN-PSR2 Datasheet PDF

Download AUSB3-AFN-PSR2 pdf datasheets and Assmann WSW Components documentation for AUSB3-AFN-PSR2 - Assmann WSW Components.

Datasheets: AUSB3-AFN-PSxx Drawing.pdf
