HomeProductsConnectors, InterconnectsRectangular Connectors - Headers, Male PinsAWH20A-0232-T-R

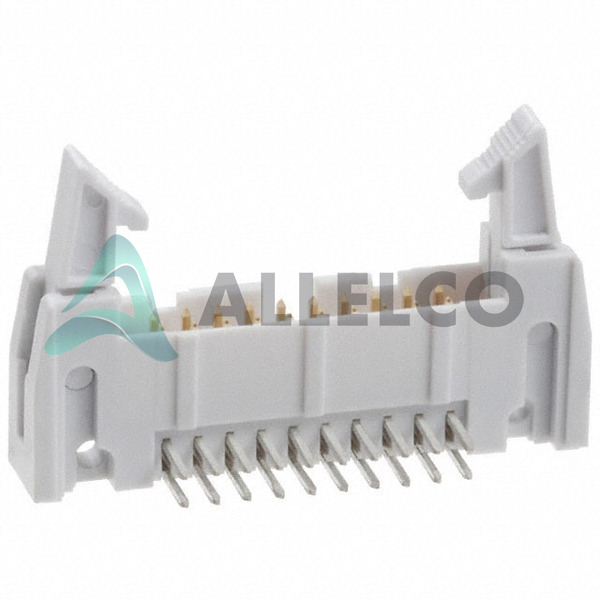

AWH20A-0232-T-R Image
AWH20A-0232-T-R Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

AWH20A-0232-T-R - Assmann WSW Components

Manufacturer Part Number
AWH20A-0232-T-R
Manufacturer
ASSMANN WSW Components
Allelco Part Number
98D-AWH20A-0232-T-R
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
CONN HEADER R/A 20POS 2.54MM
Package
Tray
Data sheet
1.AWH20A-0232-T-R.pdf ...

HTML Datasheet

AWHxxA-0xx2-T Drawing.pdf
Compare
Our certification
In stock: 39627

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

AWH20A-0232-T-R Tech Specifications
Assmann WSW Components - AWH20A-0232-T-R technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components - AWH20A-0232-T-R

Product Attribute Attribute Value
Manufacturer ASSMANN WSW Components
Voltage Rating -
Termination Solder
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Series -
Row Spacing - Mating 0.100" (2.54mm)
Pitch - Mating 0.100" (2.54mm)
Package Tray
Overall Contact Length -
Operating Temperature -40°C ~ 105°C
Number of Rows 2
Number of Positions Loaded All
Number of Positions 20
Mounting Type Through Hole, Right Angle
Material Flammability Rating UL94 V-0
Mated Stacking Heights -
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Product Attribute Attribute Value
Insulation Height 0.669" (17.00mm)
Insulation Color Gray
Ingress Protection -
Features Keying Slot
Fastening Type Latch Lock/Eject Hooks, Long
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Shape Square
Contact Material Brass
Contact Length - Post 0.150" (3.81mm)
Contact Length - Mating -
Contact Finish Thickness - Post -
Contact Finish Thickness - Mating Flash
Contact Finish - Post Tin
Contact Finish - Mating Gold
Connector Type Header
Applications -

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040

Parts with Similar Specifications

The three parts on the right have similar specifications to Assmann WSW Components AWH20A-0232-T-R

Product Attribute AWH20G-0232-T-R AWH20A-0222-T-R AWH20A-0202-T-R AWH20G-0202-T-R
Part Number AWH20G-0232-T-R AWH20A-0222-T-R AWH20A-0202-T-R AWH20G-0202-T-R
Manufacturer Assmann WSW Components Assmann WSW Components Assmann WSW Components Assmann WSW Components
Contact Length - Post - - - -
Features - - - Simultaneous Sampling
Style - - - -
Ingress Protection - - - -
Contact Finish Thickness - Mating - - - -
Series - - - -
Connector Type - - - -
Overall Contact Length - - - -
Row Spacing - Mating - - - -
Mated Stacking Heights - - - -
Applications - - - -
Contact Material - - - -
Voltage Rating - - - -
Contact Length - Mating - - - -
Fastening Type - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Contact Type - - - -
Contact Finish - Mating - - - -
Termination - - - -
Number of Positions - - - -
Material Flammability Rating - - - -
Insulation Material - - - -
Number of Rows - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Insulation Color - - - -
Insulation Height - - - -
Current Rating (Amps) - - - -
Pitch - Mating - - - -
Contact Finish - Post - - - -
Number of Positions Loaded - - - -
Shrouding - - - -
Contact Shape - - - -
Contact Finish Thickness - Post - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)

AWH20A-0232-T-R Datasheet PDF

Download AWH20A-0232-T-R pdf datasheets and Assmann WSW Components documentation for AWH20A-0232-T-R - Assmann WSW Components.

Datasheets
AWHxxA-0xx2-T Drawing.pdf
HTML Datasheet
