Specifications

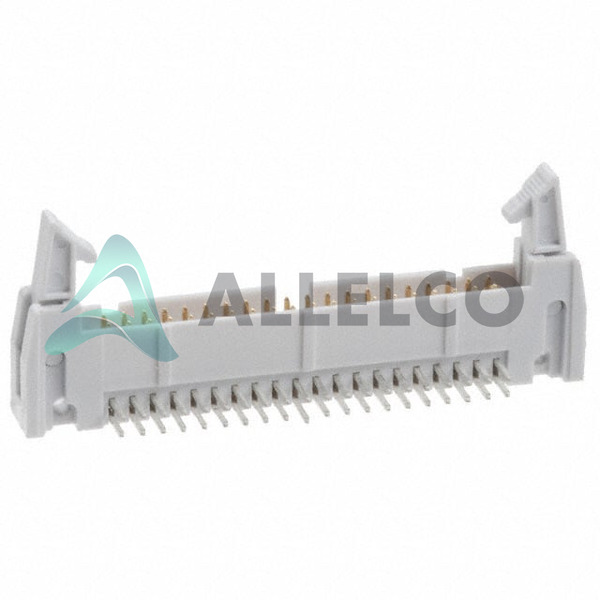

AWH40A-0232-T-R Tech Specifications
Assmann WSW Components - AWH40A-0232-T-R technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components - AWH40A-0232-T-R
| Product Attribute |
Attribute Value
| |
| Manufacturer |
ASSMANN WSW Components |
|
| Voltage Rating |
- |
|
| Termination |
Solder |
|
| Style |
Board to Cable/Wire |
|
| Shrouding |
Shrouded - 4 Wall |
|
| Series |
- |
|
| Row Spacing - Mating |
0.100' (2.54mm) |
|
| Pitch - Mating |
0.100' (2.54mm) |
|
| Package |
Tray |
|
| Overall Contact Length |
- |
|
| Operating Temperature |
-40°C ~ 105°C |
|
| Number of Rows |
2 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
40 |
|
| Mounting Type |
Through Hole, Right Angle |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Polybutylene Terephthalate (PBT), Glass Filled |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.669' (17.00mm) |
|
| Insulation Color |
Gray |
|
| Ingress Protection |
- |
|
| Features |
Keying Slot |
|
| Fastening Type |
Latch Lock/Eject Hooks, Long |
|
| Current Rating (Amps) |
3A |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Square |
|
| Contact Material |
Brass |
|
| Contact Length - Post |
0.150' (3.81mm) |
|
| Contact Length - Mating |
- |
|
| Contact Finish Thickness - Post |
- |
|
| Contact Finish Thickness - Mating |
Flash |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Header |
|
| Applications |
- |
|
