HomeProductsConnectors, InterconnectsRectangular Connectors - Headers, Male PinsAWHW2 16A-0202

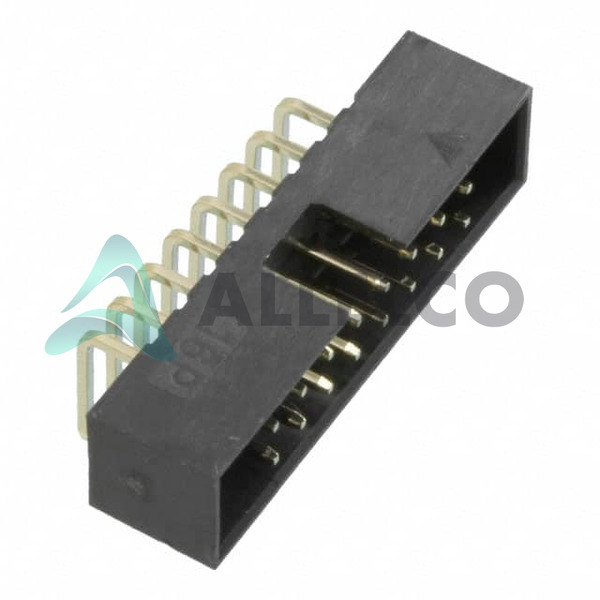

AWHW2 16A-0202 Image
AWHW2 16A-0202 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

AWHW2 16A-0202 - Assmann WSW Components

Manufacturer Part Number
AWHW2 16A-0202
Manufacturer
ASSMANN WSW Components
Allelco Part Number
98D-AWHW2 16A-0202
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
CONN HEADER R/A 16POS 2MM
Package
Tray
Data sheet
1.AWHW2 16A-0202.pdf ...
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 37271
  • Unit Price: $1.041
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.041 $1.04
200+ $0.416 $83.20
500+ $0.402 $201.00
1000+ $0.395 $395.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

AWHW2 16A-0202 Tech Specifications
Assmann WSW Components - AWHW2 16A-0202 technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components - AWHW2 16A-0202

Product Attribute Attribute Value
Manufacturer ASSMANN WSW Components
Voltage Rating -
Termination Solder
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Series -
Row Spacing - Mating 0.079' (2.00mm)
Pitch - Mating 0.079' (2.00mm)
Package Tray
Overall Contact Length -
Operating Temperature -40°C ~ 105°C
Number of Rows 2
Number of Positions Loaded All
Number of Positions 16
Mounting Type Through Hole, Right Angle
Material Flammability Rating UL94 V-0
Mated Stacking Heights -
Insulation Material Polyamide (PA9T), Nylon 9T, Glass Filled
Product Attribute Attribute Value
Insulation Height 0.217' (5.51mm)
Insulation Color Black
Ingress Protection -
Features Keying Slot
Fastening Type Push-Pull
Current Rating (Amps) 1.5A
Contact Type Male Pin
Contact Shape Square
Contact Material Brass
Contact Length - Post 0.110' (2.79mm)
Contact Length - Mating 0.157' (4.00mm)
Contact Finish Thickness - Post -
Contact Finish Thickness - Mating Flash
Contact Finish - Post -
Contact Finish - Mating Gold
Connector Type Header
Base Product Number AWHW2 16
Applications -

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040

Parts with Similar Specifications

The three parts on the right have similar specifications to Assmann WSW Components AWHW2 16A-0202

Product Attribute AWHW2 10A-0202 AWHW2 16G-0202 AWHW2 14A-0202 AWHW2 26A-0202
Part Number AWHW2 10A-0202 AWHW2 16G-0202 AWHW2 14A-0202 AWHW2 26A-0202
Manufacturer Assmann WSW Components Assmann WSW Components Assmann WSW Components Assmann WSW Components
Contact Finish Thickness - Mating - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Contact Shape - - - -
Number of Positions Loaded - - - -
Material Flammability Rating - - - -
Contact Finish Thickness - Post - - - -
Number of Positions - - - -
Insulation Material - - - -
Contact Type - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Series - - - -
Termination - - - -
Voltage Rating - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Ingress Protection - - - -
Fastening Type - - - -
Insulation Color - - - -
Shrouding - - - -
Features - - - Simultaneous Sampling
Connector Type - - - -
Style - - - -
Row Spacing - Mating - - - -
Insulation Height - - - -
Contact Length - Mating - - - -
Contact Finish - Post - - - -
Number of Rows - - - -
Overall Contact Length - - - -
Current Rating (Amps) - - - -
Contact Finish - Mating - - - -
Mated Stacking Heights - - - -
Contact Material - - - -
Pitch - Mating - - - -
Contact Length - Post - - - -
Applications - - - -

AWHW2 16A-0202 Datasheet PDF
