HomeProductsConnectors, InterconnectsRectangular Connectors - Headers, Male PinsAWHW2-26G-SMD-R

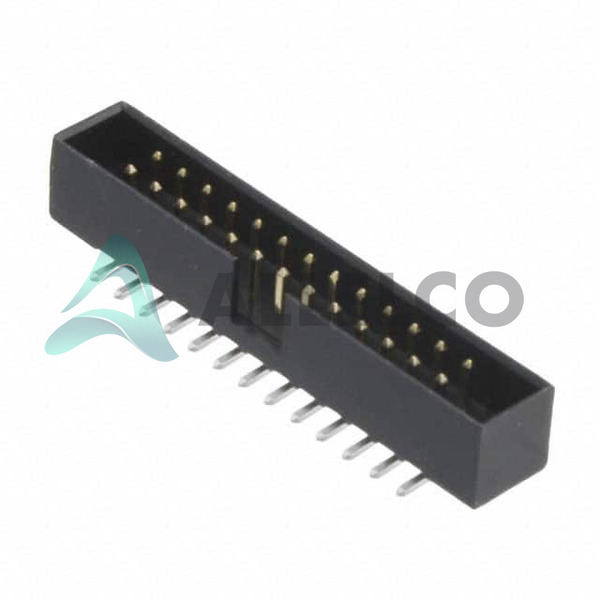

AWHW2-26G-SMD-R Image
AWHW2-26G-SMD-R Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

AWHW2-26G-SMD-R - Assmann WSW Components

Manufacturer Part Number
AWHW2-26G-SMD-R
Manufacturer
ASSMANN WSW Components
Allelco Part Number
98D-AWHW2-26G-SMD-R
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
CONN HEADER SMD 26POS 2MM
Package
Tray
Data sheet
1.AWHW2-26G-SMD-R.pdf ...

PCN Obsolescence/ EOL

AWHW2-26G-SMD-R 12/Dec/2014.pdf
Compare
Our certification
In stock: 43798

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

AWHW2-26G-SMD-R Tech Specifications
Assmann WSW Components - AWHW2-26G-SMD-R technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components - AWHW2-26G-SMD-R

Product Attribute Attribute Value
Manufacturer ASSMANN WSW Components
Voltage Rating -
Termination Solder
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Series -
Row Spacing - Mating 0.079' (2.00mm)
Pitch - Mating 0.079' (2.00mm)
Package Tray
Overall Contact Length -
Operating Temperature -40°C ~ 105°C
Number of Rows 2
Number of Positions Loaded All
Number of Positions 26
Mounting Type Surface Mount
Material Flammability Rating UL94 V-0
Mated Stacking Heights -
Insulation Material Polyamide (PA9T), Nylon 9T, Glass Filled
Product Attribute Attribute Value
Insulation Height 0.220' (5.60mm)
Insulation Color Black
Ingress Protection -
Features Keying Slot, Pick and Place
Fastening Type Push-Pull
Current Rating (Amps) 1.5A
Contact Type Male Pin
Contact Shape Square
Contact Material Brass
Contact Length - Post -
Contact Length - Mating 0.157' (4.00mm)
Contact Finish Thickness - Post -
Contact Finish Thickness - Mating Flash
Contact Finish - Post -
Contact Finish - Mating Gold
Connector Type Header
Applications -

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040

Parts with Similar Specifications

The three parts on the right have similar specifications to Assmann WSW Components AWHW2-26G-SMD-R

Product Attribute AWHW2-20G-SMD-R AWHW20-G-SMD-R AWHW2-40-G-SMD-R AWHW2-26G-0202-T-R
Part Number AWHW2-20G-SMD-R AWHW20-G-SMD-R AWHW2-40-G-SMD-R AWHW2-26G-0202-T-R
Manufacturer Assmann WSW Components Assmann WSW Components Assmann WSW Components Assmann WSW Components
Ingress Protection - - - -
Voltage Rating - - - -
Contact Finish - Post - - - -
Contact Finish - Mating - - - -
Material Flammability Rating - - - -
Number of Positions Loaded - - - -
Contact Length - Mating - - - -
Insulation Color - - - -
Applications - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Contact Length - Post - - - -
Number of Positions - - - -
Termination - - - -
Contact Finish Thickness - Mating - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Contact Type - - - -
Connector Type - - - -
Contact Finish Thickness - Post - - - -
Insulation Material - - - -
Style - - - -
Insulation Height - - - -
Number of Rows - - - -
Fastening Type - - - -
Overall Contact Length - - - -
Pitch - Mating - - - -
Features - - - Simultaneous Sampling
Mated Stacking Heights - - - -
Contact Shape - - - -
Shrouding - - - -
Row Spacing - Mating - - - -
Contact Material - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Series - - - -
Current Rating (Amps) - - - -

AWHW2-26G-SMD-R Datasheet PDF

Download AWHW2-26G-SMD-R pdf datasheets and Assmann WSW Components documentation for AWHW2-26G-SMD-R - Assmann WSW Components.

Datasheets
Cylindrical Battery Holders.pdf
PCN Obsolescence/ EOL
AWHW2-26G-SMD-R 12/Dec/2014.pdf
