HomeProductsConnectors, InterconnectsCard Edge Connectors - Edgeboard Connectors119A-80A00-R02

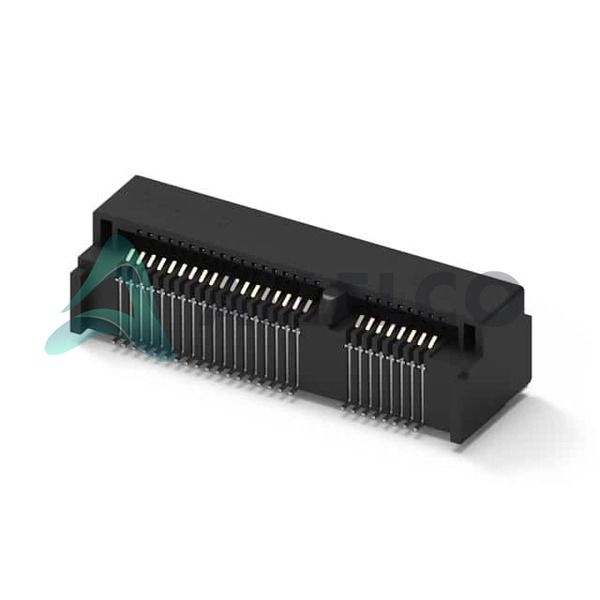

119A-80A00-R02 Image
119A-80A00-R02 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

119A-80A00-R02 - ATTEND Technology

Manufacturer Part Number
119A-80A00-R02
Manufacturer
ATTEND Technology
Allelco Part Number
98D-119A-80A00-R02
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
CONN MINI PCIE SOCKET 52P
Package
Tape & Reel (TR)
Data sheet
1.119A-80A00-R02.pdf ...

Datasheets

119A-xxA00-R02.pdf

Product Drawings

119A-80A00-R02 Drawing.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 34432
  • Unit Price: $2.882
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $2.882 $2.88
200+ $1.15 $230.00
400+ $1.111 $444.40
800+ $1.093 $874.40
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

119A-80A00-R02 Tech Specifications
ATTEND Technology - 119A-80A00-R02 technical specifications, attributes, parameters and parts with similar specifications to ATTEND Technology - 119A-80A00-R02

Product Attribute Attribute Value
Manufacturer ATTEND Technology
Termination Rows 2
Termination Solder
Series -
Read Out Dual
Pitch 0.031" (0.80mm)
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 85°C
Number of Rows 2
Number of Positions/Bay/Row 8; 18
Number of Positions 52
Mounting Type Surface Mount
Product Attribute Attribute Value
Material - Insulation Liquid Crystal Polymer (LCP)
Gender Female
Flange Feature -
Features Board Guide, Solder Retention
Contact Type -
Contact Material Phosphor Bronze
Contact Finish Thickness Flash
Contact Finish Gold
Color Black
Card Type PCI Express Mini Card
Card Thickness -

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040

Parts with Similar Specifications

The three parts on the right have similar specifications to ATTEND Technology 119A-80A00-R02

Product Attribute 119A-80A00-R02 119A-56A00-R02 119A-92A00-R02 119A-40A00-R02
Part Number 119A-80A00-R02 119A-56A00-R02 119A-92A00-R02 119A-40A00-R02
Manufacturer ATTEND Technology ATTEND Technology ATTEND Technology ATTEND Technology
Contact Finish Gold Gold Gold Gold
Features Board Guide, Solder Retention Board Guide, Solder Retention Board Guide, Solder Retention Board Guide, Solder Retention
Card Type PCI Express Mini Card PCI Express Mini Card PCI Express Mini Card PCI Express Mini Card
Contact Finish Thickness Flash Flash Flash Flash
Termination Rows 2 2 2 2
Material - Insulation Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP)
Contact Material Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze
Contact Type - - - -
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Number of Positions/Bay/Row 8; 18 8; 18 8; 18 8; 18
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Series - - - -
Color Black Black Black Black
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Pitch 0.031" (0.80mm) 0.031" (0.80mm) 0.031" (0.80mm) 0.031" (0.80mm)
Number of Positions 52 52 52 52
Termination Solder Solder Solder Solder
Read Out Dual Dual Dual Dual
Gender Female Female Female Female
Card Thickness - - - -
Number of Rows 2 2 2 2
Flange Feature - - - -

119A-80A00-R02 Datasheet PDF

Download 119A-80A00-R02 pdf datasheets and ATTEND Technology documentation for 119A-80A00-R02 - ATTEND Technology.

Datasheets
119A-xxA00-R02.pdf
Product Drawings
119A-80A00-R02 Drawing.pdf
