Specifications

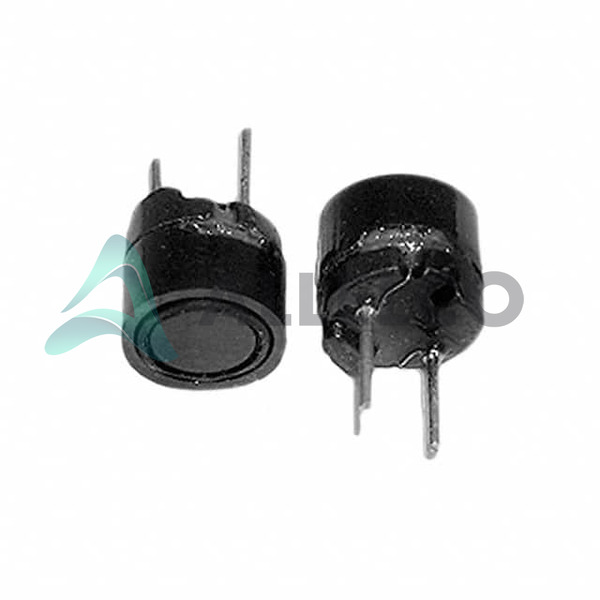

AISR-01-393J Tech Specifications
Abracon LLC - AISR-01-393J technical specifications, attributes, parameters and parts with similar specifications to Abracon LLC - AISR-01-393J
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Abracon |
|
| Type |
Drum Core, Wirewound |
|
| Tolerance |
±5% |
|
| Supplier Device Package |
- |
|
| Size / Dimension |
0.425" Dia (10.80mm) |
|
| Shielding |
Shielded |
|
| Series |
AISR-01 |
|
| Ratings |
- |
|
| Q @ Freq |
100 @ 50kHz |
|
| Package / Case |
Radial, Vertical Cylinder |
|
| Package |
Bulk |
|
| Product Attribute |
Attribute Value
| |
| Operating Temperature |
-25°C ~ 85°C |
|
| Mounting Type |
Through Hole |
|
| Material - Core |
Ferrite |
|
| Inductance Frequency - Test |
1 kHz |
|
| Inductance |
39 mH |
|
| Height - Seated (Max) |
0.551" (14.00mm) |
|
| Frequency - Self Resonant |
120kHz |
|
| DC Resistance (DCR) |
45Ohm Max |
|
| Current Rating (Amps) |
15 mA |
|
| Current - Saturation (Isat) |
- |
|
