Specifications

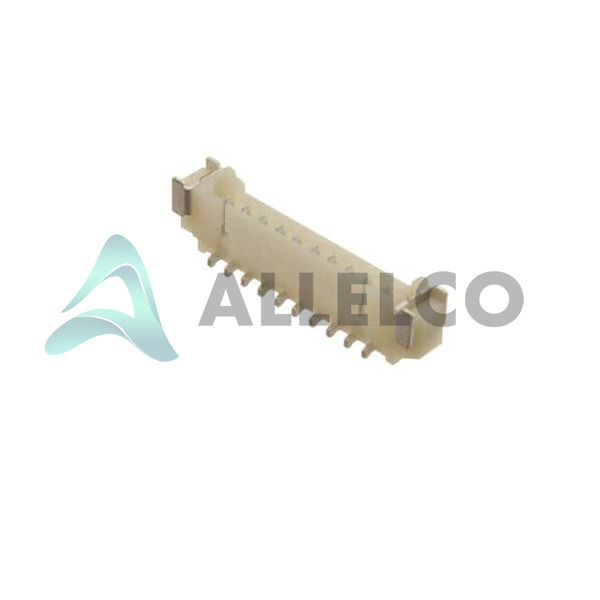

125SH-A-10-TR-SMT Tech Specifications
Adam Tech - 125SH-A-10-TR-SMT technical specifications, attributes, parameters and parts with similar specifications to Adam Tech - 125SH-A-10-TR-SMT
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Adam Tech |
|
| Voltage Rating |
250VAC |
|
| Termination |
Solder |
|
| Style |
Board to Cable/Wire |
|
| Shrouding |
Shrouded - 4 Wall |
|
| Series |
125SH |
|
| Row Spacing - Mating |
- |
|
| Pitch - Mating |
0.049" (1.25mm) |
|
| Package |
Tube |
|
| Overall Contact Length |
- |
|
| Operating Temperature |
-25°C ~ 85°C |
|
| Number of Rows |
1 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
10 |
|
| Mounting Type |
Surface Mount, Right Angle |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Thermoplastic, Glass Filled |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.134" (3.40mm) |
|
| Insulation Color |
Natural |
|
| Ingress Protection |
- |
|
| Features |
Solder Retention |
|
| Fastening Type |
Friction Lock |
|
| Current Rating (Amps) |
1A |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Rectangular |
|
| Contact Material |
Brass |
|
| Contact Length - Post |
- |
|
| Contact Length - Mating |
- |
|
| Contact Finish Thickness - Post |
- |
|
| Contact Finish Thickness - Mating |
- |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Tin |
|
| Connector Type |
Header |
|
| Base Product Number |
125SH-A |
|
| Applications |
- |
|
