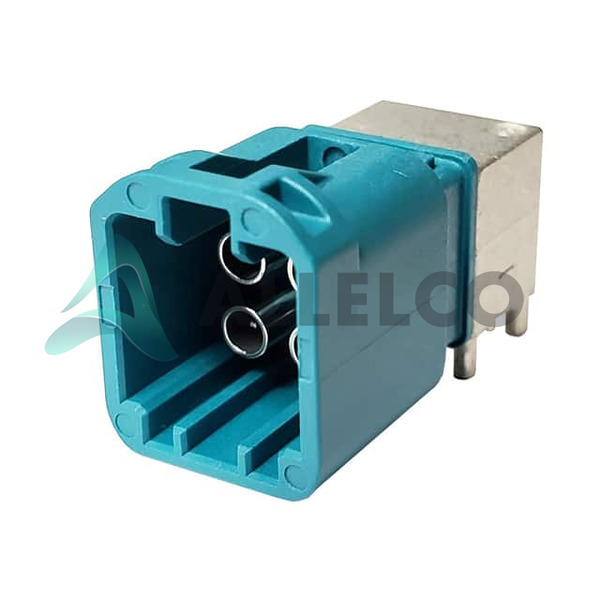

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

MHSD-04Z-BM-PRA-TR - Adam Tech

Manufacturer Part Number: MHSD-04Z-BM-PRA-TR

Manufacturer: Adam Tech

Allelco Part Number: 98D-MHSD-04Z-BM-PRA-TR

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: MINI FAKRA BOARD-SIDE PLUGS Z CO

Package: Tape & Reel (TR)

Data sheet: 1.MHSD-04Z-BM-PRA.pdf ...

Datasheets
MHSD-04x-BM-PRA-TR Datasheet.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 32519

Unit Price: $6.322
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$6.322	$6.32
200+	$2.447	$489.40
500+	$2.36	$1,180.00
1000+	$2.319	$2,319.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

MHSD-04Z-BM-PRA-TR Tech Specifications
Adam Tech - MHSD-04Z-BM-PRA-TR technical specifications, attributes, parameters and parts with similar specifications to Adam Tech - MHSD-04Z-BM-PRA-TR

Product Attribute	Attribute Value
Manufacturer	Adam Tech
Shield Termination	Solder
Series	MHSD
Package	Tape & Reel (TR)
Operating Temperature	-40°C ~ 105°C
Number of Ports	1
Mounting Type	Through Hole, Right Angle
Mounting Feature	-
Mating Cycles	25
Insertion Loss	0.75dB
Ingress Protection	-
Includes	-
Impedance	50Ohm
Housing Color	Blue, Water

Product Attribute	Attribute Value
Frequency - Max	9 GHz
Features	Code Z
Fastening Type	Latch Lock
Dielectric Material	Thermoplastic
Contact Termination	Solder
Connector Type	Plug, Male Pin
Connector Style	Miniature Coaxial, Fakra, Quadraxial
Center Contact Plating	Silver
Center Contact Material	Brass
Cable Group	-
Body Material	Zinc Die Cast
Body Finish	Tin
Base Product Number	MHSD-04

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4010

Parts with Similar Specifications

The three parts on the right have similar specifications to Adam Tech MHSD-04Z-BM-PRA-TR

Product Attribute
Part Number	MHSD-04Z-AM-PRA-TR	MHSD-04E-BM-PRA-TR	MHSD-04F-BM-PRA-TR	MHSD-04C-BM-PRA-TR
Manufacturer	Adam Tech	Adam Tech	Adam Tech	Adam Tech
Impedance	-	-	-	-
Mating Cycles	-	-	-	-
Housing Color	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Fastening Type	-	-	-	-
Features	-	-	-	Simultaneous Sampling
Cable Group	-	-	-	-
Shield Termination	-	-	-	-
Includes	-	-	-	-
Dielectric Material	-	-	-	-
Body Material	-	-	-	-
Ingress Protection	-	-	-	-
Series	-	-	-	-
Contact Termination	-	-	-	-
Center Contact Plating	-	-	-	-
Center Contact Material	-	-	-	-
Connector Style	-	-	-	-
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Mounting Feature	-	-	-	-
Body Finish	-	-	-	-
Number of Ports	-	-	-	-
Connector Type	-	-	-	-
Insertion Loss	-	-	-	-
Frequency - Max	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C

MHSD-04Z-BM-PRA-TR Datasheet PDF

Download MHSD-04Z-BM-PRA-TR pdf datasheets and Adam Tech documentation for MHSD-04Z-BM-PRA-TR - Adam Tech.

Datasheets: MHSD-04x-BM-PRA-TR Datasheet.pdf
