Specifications

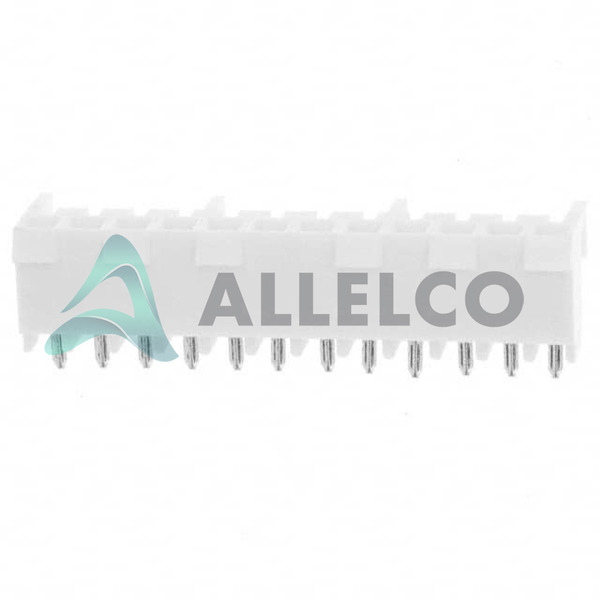

0009484128 Tech Specifications
Molex - 0009484128 technical specifications, attributes, parameters and parts with similar specifications to Molex - 0009484128
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Molex |
|
| Voltage Rating |
600V |
|
| Termination |
Solder |
|
| Style |
Board to Board or Cable |
|
| Series |
KK396, 41815 |
|
| Row Spacing - Mating |
- |
|
| Pitch - Mating |
0.156" (3.96mm) |
|
| Package |
Tray |
|
| Operating Temperature |
-40°C ~ 105°C |
|
| Number of Rows |
1 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
12 |
|
| Mounting Type |
Through Hole |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Polyester |
|
| Insulation Height |
0.449" (11.40mm) |
|
| Product Attribute |
Attribute Value
| |
| Insulation Color |
Natural |
|
| Ingress Protection |
- |
|
| Features |
Board Hooks |
|
| Fastening Type |
Locking Ramp |
|
| Current Rating (Amps) |
5A |
|
| Contact Type |
Female Socket |
|
| Contact Shape |
Square |
|
| Contact Material |
Phosphor Bronze |
|
| Contact Length - Post |
0.120" (3.05mm) |
|
| Contact Finish Thickness - Post |
60.0µin (1.52µm) |
|
| Contact Finish Thickness - Mating |
60.0µin (1.52µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Tin |
|
| Connector Type |
Receptacle |
|
| Base Product Number |
000948 |
|
| Applications |
Automotive, General Purpose, Medical, Telecommunications |
|
