Specifications

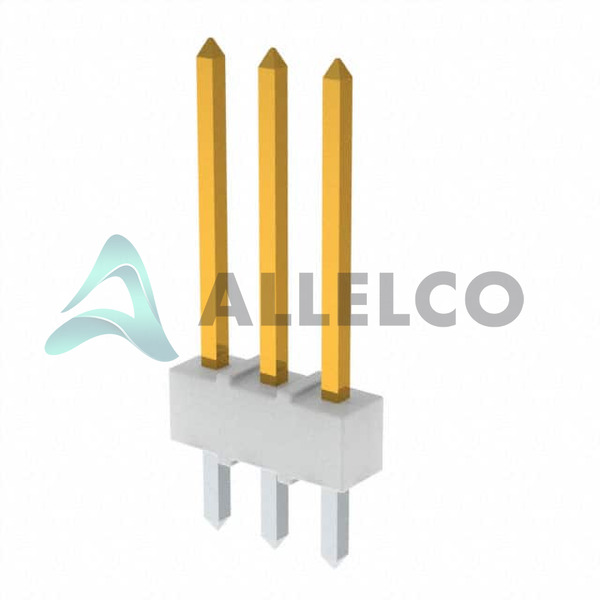

0022102032 Tech Specifications
Molex - 0022102032 technical specifications, attributes, parameters and parts with similar specifications to Molex - 0022102032
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Molex |
|
| Voltage Rating |
- |
|
| Termination |
Solder |
|
| Style |
Board to Board or Cable |
|
| Shrouding |
Unshrouded |
|
| Series |
KK254, 4030 |
|
| Row Spacing - Mating |
- |
|
| Pitch - Mating |
0.100' (2.54mm) |
|
| Package |
Bulk |
|
| Overall Contact Length |
0.690' (17.53mm) |
|
| Operating Temperature |
- |
|
| Number of Rows |
1 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
3 |
|
| Mounting Type |
Through Hole |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Polyamide (PA), Nylon |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.130' (3.30mm) |
|
| Insulation Color |
White |
|
| Ingress Protection |
- |
|
| Features |
- |
|
| Fastening Type |
Push-Pull |
|
| Current Rating (Amps) |
- |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Square |
|
| Contact Material |
- |
|
| Contact Length - Post |
0.125' (3.18mm) |
|
| Contact Length - Mating |
0.435' (11.05mm) |
|
| Contact Finish Thickness - Post |
100.0µin (2.54µm) |
|
| Contact Finish Thickness - Mating |
20.0µin (0.51µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Header |
|
| Base Product Number |
002210 |
|
| Applications |
Automotive, General Purpose, Medical, Telecommunications |
|
