0022281248 Tech Specifications

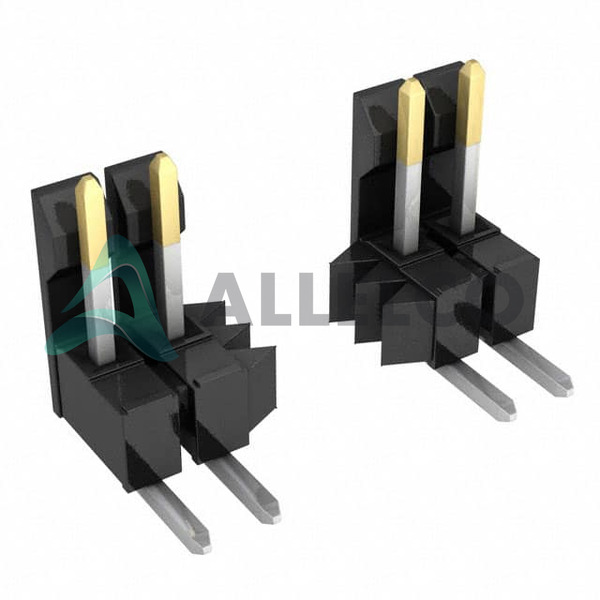

Molex - 0022281248 technical specifications, attributes, parameters and parts with similar specifications to Molex - 0022281248
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Molex |
|
| Voltage Rating |
- |
|
| Termination |
Solder |
|
| Style |
Board to Board or Cable |
|
| Shrouding |
Shrouded - 1 Wall |
|
| Series |
KK254, 42228 |
|
| Row Spacing - Mating |
- |
|
| Pitch - Mating |
0.100" (2.54mm) |
|
| Package |
Bulk |
|
| Overall Contact Length |
- |
|
| Operating Temperature |
- |
|
| Number of Rows |
1 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
24 |
|
| Mounting Type |
Through Hole, Right Angle |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Polyamide (PA), Nylon, Glass Filled |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.284" (7.21mm) |
|
| Insulation Color |
Black |
|
| Ingress Protection |
- |
|
| Features |
- |
|
| Fastening Type |
Friction Lock |
|
| Current Rating (Amps) |
- |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Square |
|
| Contact Material |
- |
|
| Contact Length - Post |
0.120" (3.05mm) |
|
| Contact Length - Mating |
0.295" (7.49mm) |
|
| Contact Finish Thickness - Post |
100.0µin (2.54µm) |
|
| Contact Finish Thickness - Mating |
30.0µin (0.76µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Header, Breakaway |
|
| Base Product Number |
002228 |
|
| Applications |
Automotive, General Purpose, Medical, Telecommunications |
|
