Specifications

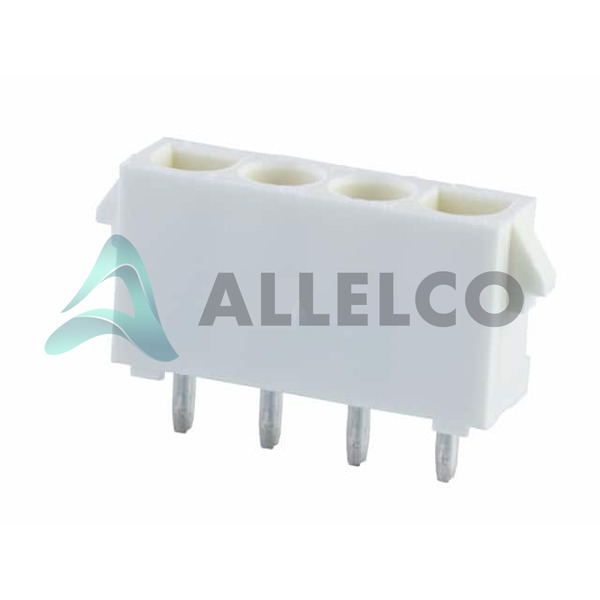

0367570103 Tech Specifications
Molex - 0367570103 technical specifications, attributes, parameters and parts with similar specifications to Molex - 0367570103
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Molex |
|
| Voltage Rating |
- |
|
| Termination |
Solder |
|
| Style |
Board to Cable/Wire |
|
| Shrouding |
Shrouded - 4 Wall |
|
| Series |
MLX 36757 |
|
| Row Spacing - Mating |
- |
|
| Pitch - Mating |
0.250' (6.35mm) |
|
| Package |
Bulk |
|
| Overall Contact Length |
- |
|
| Operating Temperature |
- |
|
| Number of Rows |
1 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
4 |
|
| Mounting Type |
Through Hole |
|
| Material Flammability Rating |
UL94 V-2 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Polyamide (PA6), Nylon 6 |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.550' (13.97mm) |
|
| Insulation Color |
Natural |
|
| Ingress Protection |
- |
|
| Features |
Glow Wire Compliant |
|
| Fastening Type |
Locking Ramp |
|
| Current Rating (Amps) |
- |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Circular |
|
| Contact Material |
- |
|
| Contact Length - Post |
0.169' (4.30mm) |
|
| Contact Length - Mating |
- |
|
| Contact Finish Thickness - Post |
- |
|
| Contact Finish Thickness - Mating |
137.8µin (3.50µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Tin |
|
| Connector Type |
Header |
|
| Base Product Number |
036757 |
|
| Applications |
Automotive, General Purpose, Industrial |
|
