HomeProductsConnectors, InterconnectsTerminal Blocks - Headers, Plugs and Sockets0395066012

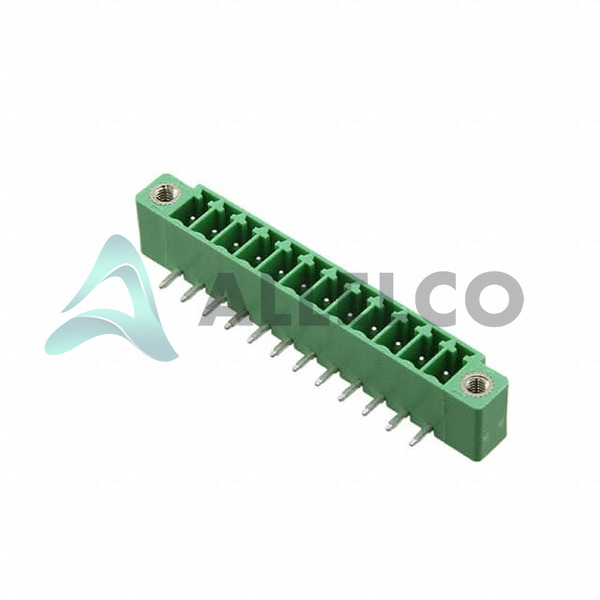

0395066012 Image
0395066012 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

0395066012 - Molex

Manufacturer Part Number
0395066012
Manufacturer
Molex
Allelco Part Number
98D-0395066012
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
TERM BLOCK HDR 12POS 90DEG 3.5MM
Package
Bulk
Data sheet
1.0395066012.pdf ...

HTML Datasheet

39500-001 Prod Spec.pdf

PCN Design/Specification

Cylindrical Battery Holders.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 33297
  • Unit Price: $1.886
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.886 $1.89
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

0395066012 Tech Specifications
Molex - 0395066012 technical specifications, attributes, parameters and parts with similar specifications to Molex - 0395066012

Product Attribute Attribute Value
Manufacturer Molex
Wire Strip Length -
Wire Gauge or Range - mm² -
Wire Gauge or Range - AWG -
Voltage - UL 300 V
Type Header, Male Pins, Shrouded (4 Side)
Torque - Screw -
Termination Style Solder
Series Eurostyle ESE 39506
Screw Size -
Positions Per Level 12
Plug Wire Entry -
Pitch 0.138' (3.50mm)
Package Bulk
Operating Temperature -40°C ~ 105°C
Number of Positions 12
Product Attribute Attribute Value
Number of Levels 1
Mounting Type Through Hole
Material Flammability Rating UL94 V-0
Insulation Height 0.270' (6.86mm)
Ingress Protection -
Housing Material Polyamide (PA66), Nylon 6/6
Header Orientation 90°, Right Angle
Features Mating Flange
Current - UL 8 A
Current - IEC -
Contact Tail Length 0.138' (3.50mm)
Contact Mating Finish Tin
Contact Material Brass
Color Green
Base Product Number 039506

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040

Parts with Similar Specifications

The three parts on the right have similar specifications to Molex 0395066012

Product Attribute 0395066015 0395066018 0395066016 0395066017
Part Number 0395066015 0395066018 0395066016 0395066017
Manufacturer Molex Molex Molex Molex
Current - IEC - - - -
Termination Style - - - -
Wire Gauge or Range - AWG - - - -
Contact Mating Finish - - - -
Features - - - Simultaneous Sampling
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Number of Levels - - - -
Insulation Height - - - -
Positions Per Level - - - -
Header Orientation - - - -
Torque - Screw - - - -
Current - UL - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Type - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Ingress Protection - - - -
Color - - - -
Plug Wire Entry - - - -
Number of Positions - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Wire Strip Length - - - -
Voltage - UL - - - -
Contact Material - - - -
Series - - - -
Pitch - - - -
Housing Material - - - -
Contact Tail Length - - - -
Material Flammability Rating - - - -
Wire Gauge or Range - mm² - - - -
Screw Size - - - -

0395066012 Datasheet PDF

Download 0395066012 pdf datasheets and Molex documentation for 0395066012 - Molex.

HTML Datasheet
39500-001 Prod Spec.pdf
PCN Design/Specification
Cylindrical Battery Holders.pdf
