Specifications

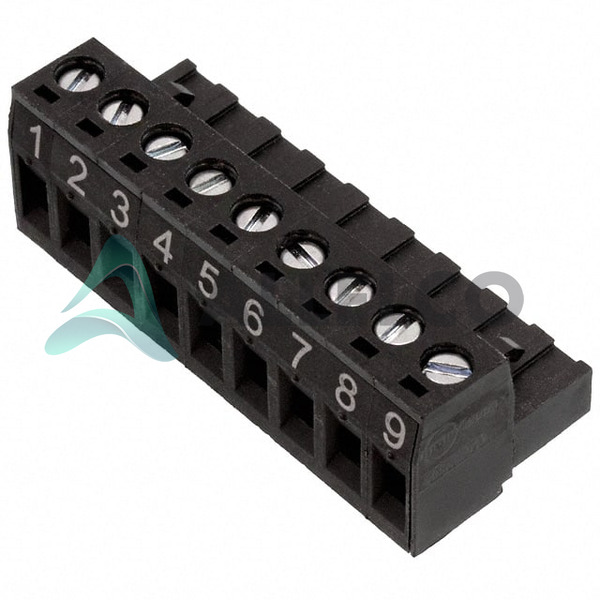

0395300109 Tech Specifications
Molex - 0395300109 technical specifications, attributes, parameters and parts with similar specifications to Molex - 0395300109
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Molex |
|
| Wire Strip Length |
5mm |
|
| Wire Gauge or Range - mm² |
- |
|
| Wire Gauge or Range - AWG |
12-26 AWG |
|
| Voltage - UL |
300 V |
|
| Type |
Plug, Female Sockets |
|
| Torque - Screw |
0.56 Nm (5.0 Lb-In) |
|
| Termination Style |
Screw - Rising Cage Clamp |
|
| Series |
Eurostyle ESE 39530 |
|
| Screw Size |
M3 |
|
| Positions Per Level |
9 |
|
| Plug Wire Entry |
180° |
|
| Pitch |
0.200" (5.08mm) |
|
| Package |
Bulk |
|
| Operating Temperature |
-40°C ~ 115°C |
|
| Number of Positions |
9 |
|
| Product Attribute |
Attribute Value
| |
| Number of Levels |
1 |
|
| Mounting Type |
Free Hanging (In-Line) |
|
| Material Flammability Rating |
- |
|
| Insulation Height |
0.591" (15.00mm) |
|
| Ingress Protection |
- |
|
| Housing Material |
Polyamide (PA), Nylon |
|
| Header Orientation |
- |
|
| Features |
Positions Stamped, Retention Latches (Non-Wire Side) |
|
| Current - UL |
15 A |
|
| Current - IEC |
- |
|
| Contact Tail Length |
- |
|
| Contact Mating Finish |
Tin |
|
| Contact Material |
Copper Alloy |
|
| Color |
Black |
|
| Base Product Number |
039530 |
|
