Specifications

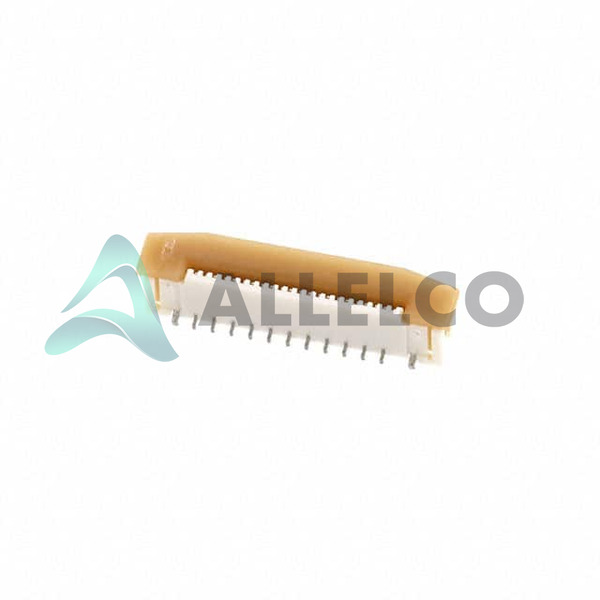

0525592234 Tech Specifications
Molex - 0525592234 technical specifications, attributes, parameters and parts with similar specifications to Molex - 0525592234
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Molex |
|
| Voltage Rating |
50V |
|
| Termination |
Solder |
|
| Series |
Easy-On 52559 |
|
| Pitch |
0.020' (0.50mm) |
|
| Package |
Tape & Reel (TR) |
|
| Operating Temperature |
-40°C ~ 85°C |
|
| Number of Positions |
22 |
|
| Mounting Type |
Surface Mount |
|
| Mating Cycles |
20 |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Locking Feature |
Slide Lock |
|
| Housing Material |
Polyamide (PA), Nylon, Glass Filled |
|
| Housing Color |
Natural |
|
| Product Attribute |
Attribute Value
| |
| Height Above Board |
0.154' (3.90mm) |
|
| Flat Flex Type |
FFC, FPC |
|
| Features |
Zero Insertion Force (ZIF) |
|
| FFC, FCB Thickness |
0.30mm |
|
| Current Rating (Amps) |
0.5A |
|
| Contact Material |
Copper Alloy |
|
| Contact Finish Thickness |
39.4µin (1.00µm) |
|
| Contact Finish |
Tin Bismuth |
|
| Connector/Contact Type |
Contacts, Vertical - 1 Sided |
|
| Cable End Type |
Straight, Tapered |
|
| Base Product Number |
052559 |
|
| Actuator Material |
Polyphenylene Sulfide (PPS), Glass Filled |
|
| Actuator Color |
Brown |
|
