Specifications

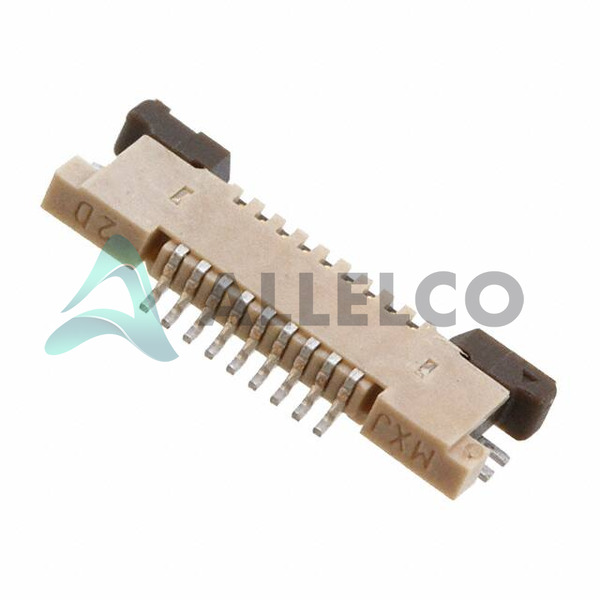

0545500971 Tech Specifications
Molex - 0545500971 technical specifications, attributes, parameters and parts with similar specifications to Molex - 0545500971
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Molex |
|
| Voltage Rating |
50V |
|
| Termination |
Solder |
|
| Series |
Easy-On 54550 |
|
| Pitch |
0.020' (0.50mm) |
|
| Package |
Tape & Reel (TR) |
|
| Operating Temperature |
-40°C ~ 85°C |
|
| Number of Positions |
9 |
|
| Mounting Type |
Surface Mount, Right Angle |
|
| Mating Cycles |
20 |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Locking Feature |
Slide Lock |
|
| Housing Material |
Liquid Crystal Polymer (LCP) |
|
| Housing Color |
- |
|
| Product Attribute |
Attribute Value
| |
| Height Above Board |
0.047' (1.20mm) |
|
| Flat Flex Type |
FFC, FPC |
|
| Features |
Solder Retention, Zero Insertion Force (ZIF) |
|
| FFC, FCB Thickness |
0.30mm |
|
| Current Rating (Amps) |
0.5A |
|
| Contact Material |
Phosphor Bronze |
|
| Contact Finish Thickness |
- |
|
| Contact Finish |
Gold |
|
| Connector/Contact Type |
Contacts, Top |
|
| Cable End Type |
Straight, Tapered |
|
| Base Product Number |
054550 |
|
| Actuator Material |
Polyphenylene Sulfide (PPS) |
|
| Actuator Color |
- |
|
