Specifications

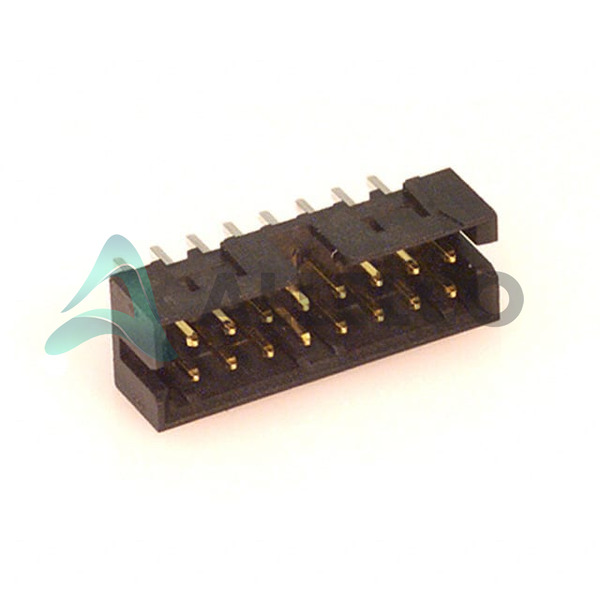

0873311620 Tech Specifications
Molex - 0873311620 technical specifications, attributes, parameters and parts with similar specifications to Molex - 0873311620
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Molex |
|
| Voltage Rating |
- |
|
| Termination |
Solder |
|
| Style |
Board to Cable/Wire |
|
| Shrouding |
Shrouded - 4 Wall |
|
| Series |
Milli-Grid 87331 |
|
| Row Spacing - Mating |
0.079" (2.00mm) |
|
| Pitch - Mating |
0.079" (2.00mm) |
|
| Package |
Tube |
|
| Overall Contact Length |
- |
|
| Operating Temperature |
- |
|
| Number of Rows |
2 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
16 |
|
| Mounting Type |
Through Hole |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Polyamide (PA46), Nylon 4/6, Glass Filled |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.252" (6.40mm) |
|
| Insulation Color |
Black |
|
| Ingress Protection |
- |
|
| Features |
Keying Slot |
|
| Fastening Type |
Latch Holder |
|
| Current Rating (Amps) |
- |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Square |
|
| Contact Material |
Phosphor Bronze |
|
| Contact Length - Post |
0.098" (2.50mm) |
|
| Contact Length - Mating |
0.141" (3.60mm) |
|
| Contact Finish Thickness - Post |
74.8µin (1.90µm) |
|
| Contact Finish Thickness - Mating |
15.0µin (0.38µm) |
|
| Contact Finish - Post |
Tin-Lead |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Header |
|
| Base Product Number |
087331 |
|
| Applications |
Automotive, General Purpose, Telecommunications |
|
