Specifications

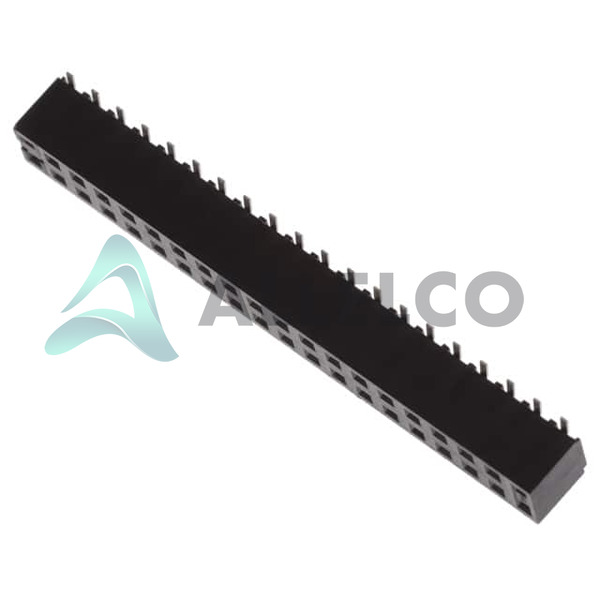

0873814063 Tech Specifications
Molex - 0873814063 technical specifications, attributes, parameters and parts with similar specifications to Molex - 0873814063
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Molex |
|
| Voltage Rating |
125V |
|
| Termination |
Solder |
|
| Style |
Board to Board |
|
| Series |
Milli-Grid 87381 |
|
| Row Spacing - Mating |
0.079' (2.00mm) |
|
| Pitch - Mating |
0.079' (2.00mm) |
|
| Package |
Tube |
|
| Operating Temperature |
-55°C ~ 105°C |
|
| Number of Rows |
2 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
40 |
|
| Mounting Type |
Surface Mount |
|
| Material Flammability Rating |
- |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
- |
|
| Insulation Height |
0.177' (4.50mm) |
|
| Product Attribute |
Attribute Value
| |
| Insulation Color |
Black |
|
| Ingress Protection |
- |
|
| Features |
Pick and Place |
|
| Fastening Type |
Push-Pull |
|
| Current Rating (Amps) |
1.9A |
|
| Contact Type |
Female Socket |
|
| Contact Shape |
Square |
|
| Contact Material |
- |
|
| Contact Length - Post |
- |
|
| Contact Finish Thickness - Post |
50.0µin (1.27µm) |
|
| Contact Finish Thickness - Mating |
30.0µin (0.76µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Receptacle |
|
| Base Product Number |
087381 |
|
| Applications |
Automotive, General Purpose, Telecommunications |
|
