Specifications

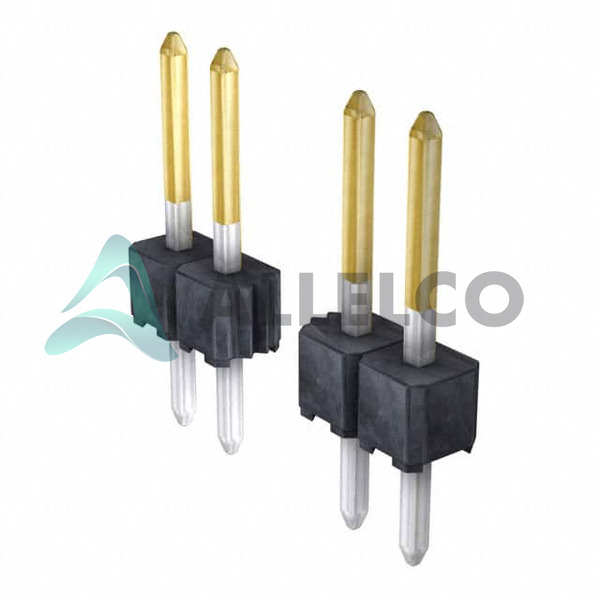

0901200928 Tech Specifications
Molex - 0901200928 technical specifications, attributes, parameters and parts with similar specifications to Molex - 0901200928
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Molex |
|
| Voltage Rating |
- |
|
| Termination |
Solder |
|
| Style |
Board to Board or Cable |
|
| Shrouding |
Unshrouded |
|
| Series |
C-Grid III 90120 |
|
| Row Spacing - Mating |
- |
|
| Pitch - Mating |
0.100' (2.54mm) |
|
| Package |
Tray |
|
| Overall Contact Length |
0.478' (12.15mm) |
|
| Operating Temperature |
-55°C ~ 125°C |
|
| Number of Rows |
1 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
8 |
|
| Mounting Type |
Through Hole |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Polyester, Glass Filled |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.098' (2.50mm) |
|
| Insulation Color |
Black |
|
| Ingress Protection |
- |
|
| Features |
- |
|
| Fastening Type |
Push-Pull |
|
| Current Rating (Amps) |
- |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Square |
|
| Contact Material |
Brass |
|
| Contact Length - Post |
0.114' (2.90mm) |
|
| Contact Length - Mating |
0.266' (6.75mm) |
|
| Contact Finish Thickness - Post |
118.1µin (3.00µm) |
|
| Contact Finish Thickness - Mating |
30.0µin (0.76µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Header, Breakaway |
|
| Base Product Number |
090120 |
|
| Applications |
Automotive, General Purpose |
|
