Specifications

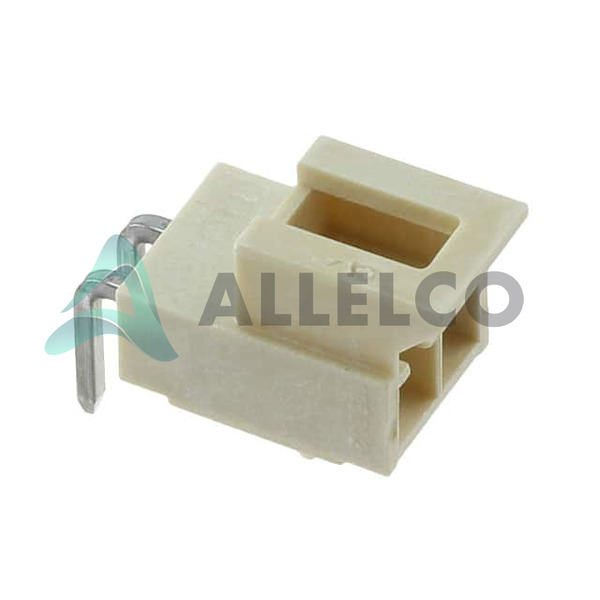

1053132202 Tech Specifications
Molex - 1053132202 technical specifications, attributes, parameters and parts with similar specifications to Molex - 1053132202
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Molex |
|
| Voltage Rating |
250V |
|
| Termination |
Solder |
|
| Style |
Board to Cable/Wire |
|
| Shrouding |
Shrouded - 4 Wall |
|
| Series |
Nano-Fit 105313 |
|
| Row Spacing - Mating |
- |
|
| Pitch - Mating |
0.098' (2.50mm) |
|
| Package |
Tray |
|
| Overall Contact Length |
- |
|
| Operating Temperature |
-40°C ~ 105°C |
|
| Number of Rows |
1 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
2 |
|
| Mounting Type |
Through Hole, Right Angle |
|
| Material Flammability Rating |
- |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Liquid Crystal Polymer (LCP) |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.149' (3.78mm) |
|
| Insulation Color |
Natural |
|
| Ingress Protection |
- |
|
| Features |
Board Guide |
|
| Fastening Type |
Latch Holder |
|
| Current Rating (Amps) |
- |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Square |
|
| Contact Material |
Brass |
|
| Contact Length - Post |
0.126' (3.20mm) |
|
| Contact Length - Mating |
- |
|
| Contact Finish Thickness - Post |
59.0µin (1.50µm) |
|
| Contact Finish Thickness - Mating |
15.0µin (0.38µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Header |
|
| Base Product Number |
105313 |
|
| Applications |
Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
|
