Specifications

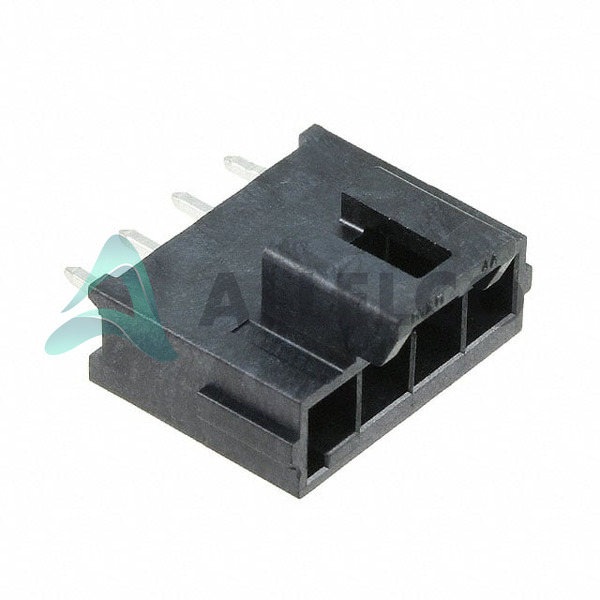

1722861104 Tech Specifications
Molex - 1722861104 technical specifications, attributes, parameters and parts with similar specifications to Molex - 1722861104
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Molex |
|
| Voltage Rating |
600V |
|
| Termination |
Kinked Pin, Solder |
|
| Style |
Board to Board or Cable |
|
| Shrouding |
Shrouded - 4 Wall |
|
| Series |
Ultra-Fit 172286 |
|
| Row Spacing - Mating |
- |
|
| Pitch - Mating |
0.138' (3.50mm) |
|
| Package |
Tray |
|
| Overall Contact Length |
- |
|
| Operating Temperature |
-40°C ~ 105°C |
|
| Number of Rows |
1 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
4 |
|
| Mounting Type |
Through Hole |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
26.99mm |
|
| Insulation Material |
Liquid Crystal Polymer (LCP) |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.465' (11.80mm) |
|
| Insulation Color |
Black |
|
| Ingress Protection |
- |
|
| Features |
Board Guide |
|
| Fastening Type |
Latch Holder |
|
| Current Rating (Amps) |
- |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Square |
|
| Contact Material |
Copper Alloy |
|
| Contact Length - Post |
0.126' (3.20mm) |
|
| Contact Length - Mating |
- |
|
| Contact Finish Thickness - Post |
60.0µin (1.52µm) |
|
| Contact Finish Thickness - Mating |
60.0µin (1.52µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Tin |
|
| Connector Type |
Header |
|
| Base Product Number |
172286 |
|
| Applications |
Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications |
|
