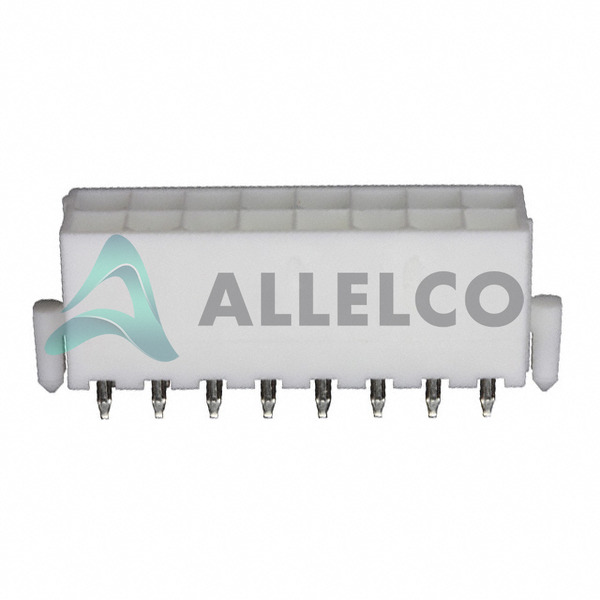

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

39-29-9167 - Affinity Medical Technologies - a Molex company

Manufacturer Part Number: 39-29-9167

Manufacturer: Molex

Allelco Part Number: 98D-39-29-9167

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: CONN HEADER 16POS 4.2MM VERT TIN

Package

Data sheet: 1.39-29-9167.pdf ...

Datasheets
5556-001 Prod Spec.pdf 39-29-9167.pdf

RoHs Status: Lead free / RoHS Compliant

~~Compare~~

Our certification

In stock: 48512

Unit Price: $1.117
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$1.117	$1.12

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

39-29-9167 Tech Specifications
Affinity Medical Technologies - a Molex company - 39-29-9167 technical specifications, attributes, parameters and parts with similar specifications to Affinity Medical Technologies - a Molex company - 39-29-9167

Product Attribute	Attribute Value
Manufacturer	Molex
Voltage Rating	-
Termination	Solder
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Jr 5566
Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)
Packaging	Tray
Overall Contact Length	-
Other Names	003929-9167 0039299167 03929-9167 039299167 3929-9167 39299167 A556616A2210 WM3882
Operating Temperature	-
Number of Rows	2
Number of Positions Loaded	All
Number of Positions	16
Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks

Product Attribute	Attribute Value
Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6
Insulation Height	0.504" (12.80mm)
Insulation Color	Natural
Ingress Protection	-
Features	Board Lock
Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 16 position 0.165" (4.20mm)
Current Rating	-
Contact Type	Male Pin
Contact Shape	Square
Contact Material	Brass
Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-
Contact Finish Thickness - Post	35.0µin (0.90µm)
Contact Finish Thickness - Mating	35.4µin (0.90µm)
Contact Finish - Post	Tin
Contact Finish - Mating	Tin
Connector Type	Header
Applications	General Purpose, Industrial, Telecommunications

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	Lead free / RoHS Compliant

Parts with Similar Specifications

The three parts on the right have similar specifications to Affinity Medical Technologies - a Molex company 39-29-9167

Product Attribute
Part Number	39-29-9147	39-29-9164	39-29-9146	39-29-9166
Manufacturer	Molex	Affinity Medical Technologies - a Molex company	Molex	Affinity Medical Technologies - a Molex company
Number of Positions Loaded	-	-	-	-
Manufacturer Standard Lead Time	-	-	-	-
Connector Type	-	-	-	-
Contact Length - Mating	-	-	-	-
Detailed Description	-	-	-	-
Termination	-	-	-	-
Insulation Color	-	-	-	-
Applications	-	-	-	-
Contact Finish Thickness - Post	-	-	-	-
Contact Length - Post	-	-	-	-
Moisture Sensitivity Level (MSL)	-	-	-	-
Current Rating	-	-	-	-
Contact Finish Thickness - Mating	-	-	-	-
Voltage Rating	-	-	-	-
Row Spacing - Mating	-	-	-	-
Other Names	-	-	-	-
Lead Free Status / RoHS Status	-	-	-	-
Pitch - Mating	-	-	-	-
Packaging	-	-	-	-
Style	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Mated Stacking Heights	-	-	-	-
Shrouding	-	-	-	-
Contact Finish - Post	-	-	-	-
Contact Finish - Mating	-	-	-	-
Fastening Type	-	-	-	-
Series	-	-	-	-
Insulation Material	-	-	-	-
Number of Positions	-	-	-	-
Number of Rows	-	-	-	-
Ingress Protection	-	-	-	-
Overall Contact Length	-	-	-	-
Features	-	-	-	Simultaneous Sampling
Contact Type	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Contact Material	-	-	-	-
Insulation Height	-	-	-	-
Contact Shape	-	-	-	-
Material Flammability Rating	-	-	-	-

39-29-9167 Datasheet PDF

Download 39-29-9167 pdf datasheets and Affinity Medical Technologies - a Molex company documentation for 39-29-9167 - Affinity Medical Technologies - a Molex company.

Datasheets: 5556-001 Prod Spec.pdf 39-29-9167.pdf
