HomeProductsConnectors, InterconnectsRectangular Connectors - Headers, Male Pins43650-0916

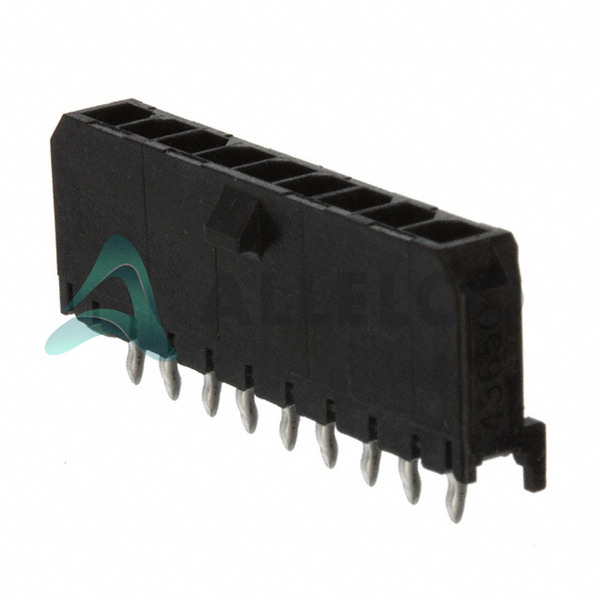

43650-0916 Image
43650-0916 Image - 143650-0916 Image - 243650-0916 Image - 3
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

43650-0916 - Affinity Medical Technologies - a Molex company

Manufacturer Part Number
43650-0916
Manufacturer
Molex
Allelco Part Number
98D-43650-0916
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
CONN HEADER 9POS 3MM VERT GOLD
Package
Data sheet
1.43650-0916.pdf ...
RoHs Status
Lead free / RoHS Compliant
Compare
Our certification
In stock: 35235
  • Unit Price: $1.024
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.024 $1.02
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

43650-0916 Tech Specifications
Affinity Medical Technologies - a Molex company - 43650-0916 technical specifications, attributes, parameters and parts with similar specifications to Affinity Medical Technologies - a Molex company - 43650-0916

Product Attribute Attribute Value
Manufacturer Molex
Voltage Rating -
Termination Kinked Pin, Solder
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Series Micro-Fit 3.0 43650
Row Spacing - Mating -
Pitch - Mating 0.118" (3.00mm)
Packaging Tray
Overall Contact Length -
Other Names 0436500916
43650-0916-TR60
436500916
WM2479
Operating Temperature -
Number of Rows 1
Number of Positions Loaded All
Number of Positions 9
Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Flammability Rating UL94 V-0
Mated Stacking Heights 17.56mm
Manufacturer Standard Lead Time 8 Weeks
Product Attribute Attribute Value
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height 0.390" (9.91mm)
Insulation Color Black
Ingress Protection -
Features Board Guide
Fastening Type Locking Ramp
Detailed Description Connector Header Through Hole 9 position 0.118" (3.00mm)
Current Rating -
Contact Type Male Pin
Contact Shape Square
Contact Material Brass
Contact Length - Post 0.125" (3.18mm)
Contact Length - Mating -
Contact Finish Thickness - Post 100.0µin (2.54µm)
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Finish - Mating Gold
Connector Type Header
Applications General Purpose, Medical, Military, Telecommunications

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status Lead free / RoHS Compliant

Parts with Similar Specifications

The three parts on the right have similar specifications to Affinity Medical Technologies - a Molex company 43650-0916

Product Attribute 43650-0913 43650-0901 43650-0915 43650-0910
Part Number 43650-0913 43650-0901 43650-0915 43650-0910
Manufacturer Affinity Medical Technologies - a Molex company Affinity Medical Technologies - a Molex company Affinity Medical Technologies - a Molex company Affinity Medical Technologies - a Molex company
Series - - - -
Current Rating - - - -
Row Spacing - Mating - - - -
Contact Finish - Post - - - -
Number of Positions Loaded - - - -
Manufacturer Standard Lead Time - - - -
Mated Stacking Heights - - - -
Contact Length - Post - - - -
Voltage Rating - - - -
Shrouding - - - -
Number of Rows - - - -
Style - - - -
Insulation Color - - - -
Detailed Description - - - -
Material Flammability Rating - - - -
Features - - - Simultaneous Sampling
Contact Finish Thickness - Mating - - - -
Applications - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Insulation Height - - - -
Fastening Type - - - -
Other Names - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Packaging - - - -
Overall Contact Length - - - -
Contact Length - Mating - - - -
Pitch - Mating - - - -
Termination - - - -
Number of Positions - - - -
Contact Finish Thickness - Post - - - -
Insulation Material - - - -
Contact Finish - Mating - - - -
Connector Type - - - -
Lead Free Status / RoHS Status - - - -
Contact Shape - - - -
Contact Type - - - -
Ingress Protection - - - -
Moisture Sensitivity Level (MSL) - - - -
Contact Material - - - -

43650-0916 Datasheet PDF

Download 43650-0916 pdf datasheets and Affinity Medical Technologies - a Molex company documentation for 43650-0916 - Affinity Medical Technologies - a Molex company.

Datasheets
43650-0916.pdf 43650, 43655 Series Pkg Drawing.pdf
