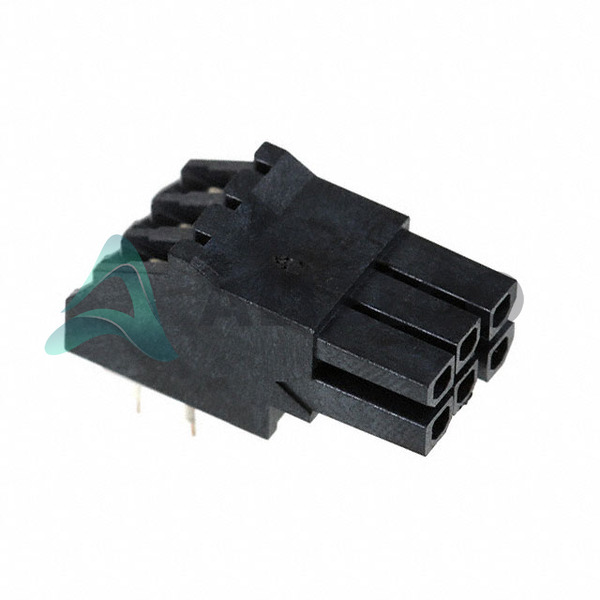

44764-0602 - Affinity Medical Technologies - a Molex company

Name: Affinity Medical Technologies - a Molex company 44764-0602
Brand: Affinity Medical Technologies - a Molex company
SKU: 44764-0602
Price: 1.404 USD
Availability: InStock
Rating: 5 (7 reviews)

Manufacturer Part Number: 44764-0602

Manufacturer: Molex

Allelco Part Number: 98D-44764-0602

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: CONN HEADER 6POS 3MM R/A GOLD

Package

Data sheet: 1.44764-0602.pdf ...

Datasheets
Micro-Fit BMI Spec.pdf 44764-xx0x Drawing.pdf

RoHs Status: Lead free / RoHS Compliant

~~Compare~~

Our certification

In stock: 41182

Unit Price: $1.404
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$1.404	$1.40

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

44764-0602 Tech Specifications
Affinity Medical Technologies - a Molex company - 44764-0602 technical specifications, attributes, parameters and parts with similar specifications to Affinity Medical Technologies - a Molex company - 44764-0602

Product Attribute	Attribute Value
Manufacturer	Molex
Voltage Rating	600VAC
Termination	Solder
Style	Board to Board or Cable
Series	Micro-Fit 3.0 BMI 44764
Row Spacing - Mating	0.118" (3.00mm)
Pitch - Mating	0.118" (3.00mm)
Packaging	Tray
Other Names	044764-0602 044764-0602-E 0447640602 0447640602-E 44764-0602-E 44764-0602-TR170 447640602 447640602-E WM1989
Operating Temperature	-40°C ~ 105°C
Number of Rows	2
Number of Positions Loaded	All
Number of Positions	6
Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-
Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

Product Attribute	Attribute Value
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height	0.402" (10.20mm)
Insulation Color	Black
Ingress Protection	-
Features	Board Guide
Fastening Type	Push-Pull
Detailed Description	6 Position Receptacle Connector 0.118" (3.00mm) Through Hole, Right Angle Gold
Current Rating	5A
Contact Type	Female Socket
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Length - Post	0.155" (3.94mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Finish - Mating	Gold
Connector Type	Receptacle
Applications	General Purpose, Telecommunications

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	Lead free / RoHS Compliant

Parts with Similar Specifications

The three parts on the right have similar specifications to Affinity Medical Technologies - a Molex company 44764-0602

Product Attribute
Part Number	44764-1002	44764-0802	44764-0402	44764-1202
Manufacturer	Affinity Medical Technologies - a Molex company	Affinity Medical Technologies - a Molex company	Affinity Medical Technologies - a Molex company	Affinity Medical Technologies - a Molex company
Material Flammability Rating	-	-	-	-
Insulation Height	-	-	-	-
Number of Positions	-	-	-	-
Ingress Protection	-	-	-	-
Contact Finish - Mating	-	-	-	-
Detailed Description	-	-	-	-
Contact Finish Thickness - Mating	-	-	-	-
Insulation Material	-	-	-	-
Number of Rows	-	-	-	-
Termination	-	-	-	-
Contact Finish Thickness - Post	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Manufacturer Standard Lead Time	-	-	-	-
Contact Shape	-	-	-	-
Contact Material	-	-	-	-
Mated Stacking Heights	-	-	-	-
Other Names	-	-	-	-
Lead Free Status / RoHS Status	-	-	-	-
Features	-	-	-	Simultaneous Sampling
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Pitch - Mating	-	-	-	-
Row Spacing - Mating	-	-	-	-
Moisture Sensitivity Level (MSL)	-	-	-	-
Insulation Color	-	-	-	-
Applications	-	-	-	-
Contact Length - Post	-	-	-	-
Series	-	-	-	-
Connector Type	-	-	-	-
Contact Type	-	-	-	-
Number of Positions Loaded	-	-	-	-
Contact Finish - Post	-	-	-	-
Packaging	-	-	-	-
Fastening Type	-	-	-	-
Style	-	-	-	-
Voltage Rating	-	-	-	-
Current Rating	-	-	-	-

44764-0602 Datasheet PDF

Download 44764-0602 pdf datasheets and Affinity Medical Technologies - a Molex company documentation for 44764-0602 - Affinity Medical Technologies - a Molex company.

Datasheets: Micro-Fit BMI Spec.pdf 44764-xx0x Drawing.pdf
