Specifications

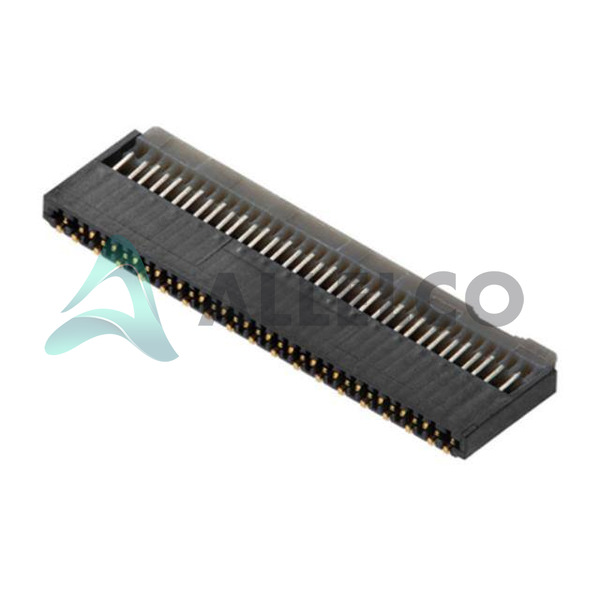

5047543500 Tech Specifications
Molex - 5047543500 technical specifications, attributes, parameters and parts with similar specifications to Molex - 5047543500
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Molex |
|
| Voltage Rating |
50V |
|
| Termination |
Solder |
|
| Series |
BackFlip, Easy-On LA75 504754 |
|
| Pitch |
0.012" (0.30mm) |
|
| Package |
Tape & Reel (TR) |
|
| Operating Temperature |
-40°C ~ 85°C |
|
| Number of Positions |
35 |
|
| Mounting Type |
Surface Mount, Right Angle |
|
| Mating Cycles |
10 |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Locking Feature |
Flip Lock, Backlock |
|
| Housing Material |
Liquid Crystal Polymer (LCP), Glass Filled |
|
| Housing Color |
Black |
|
| Product Attribute |
Attribute Value
| |
| Height Above Board |
0.030" (0.75mm) |
|
| Flat Flex Type |
FPC |
|
| Features |
- |
|
| FFC, FCB Thickness |
0.20mm |
|
| Current Rating (Amps) |
0.2A |
|
| Contact Material |
Copper Alloy |
|
| Contact Finish Thickness |
3.94µin (0.10µm) |
|
| Contact Finish |
Gold |
|
| Connector/Contact Type |
Contacts, Top and Bottom |
|
| Cable End Type |
Tabbed |
|
| Base Product Number |
504754 |
|
| Actuator Material |
Polyamide (PA), Nylon, Glass Filled |
|
| Actuator Color |
Gray |
|
