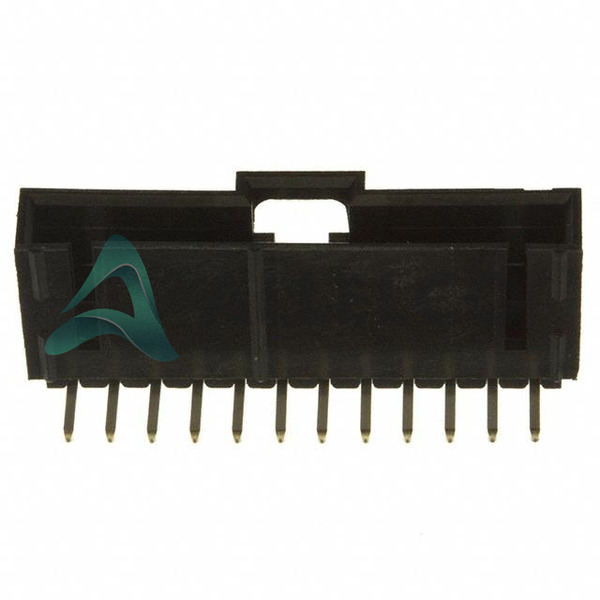

70553-0116 Tech Specifications
Affinity Medical Technologies - a Molex company - 70553-0116 technical specifications, attributes, parameters and parts with similar specifications to Affinity Medical Technologies - a Molex company - 70553-0116
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Molex |
|
| Voltage Rating |
250V |
|
| Termination |
Solder |
|
| Style |
Board to Cable/Wire |
|
| Shrouding |
Shrouded - 4 Wall |
|
| Series |
SL 70553 |
|
| Row Spacing - Mating |
- |
|
| Pitch - Mating |
0.100" (2.54mm) |
|
| Packaging |
Tube |
|
| Overall Contact Length |
- |
|
| Other Names |
705530116
WM4163 |
|
| Operating Temperature |
-40°C ~ 105°C |
|
| Number of Rows |
1 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
12 |
|
| Mounting Type |
Through Hole, Right Angle |
|
| Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Manufacturer Standard Lead Time |
7 Weeks |
|
| Product Attribute |
Attribute Value
| |
| Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|
| Insulation Material |
Polyester, Glass Filled |
|
| Insulation Height |
0.215" (5.45mm) |
|
| Insulation Color |
Black |
|
| Ingress Protection |
- |
|
| Features |
- |
|
| Fastening Type |
Latch Holder |
|
| Detailed Description |
Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm) |
|
| Current Rating |
- |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Square |
|
| Contact Material |
Phosphor Bronze |
|
| Contact Length - Post |
0.130" (3.30mm) |
|
| Contact Length - Mating |
0.240" (6.10mm) |
|
| Contact Finish Thickness - Post |
74.8µin (1.90µm) |
|
| Contact Finish Thickness - Mating |
30.0µin (0.76µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Header |
|
| Applications |
Automotive, General Purpose, Industrial, Medical |
|
