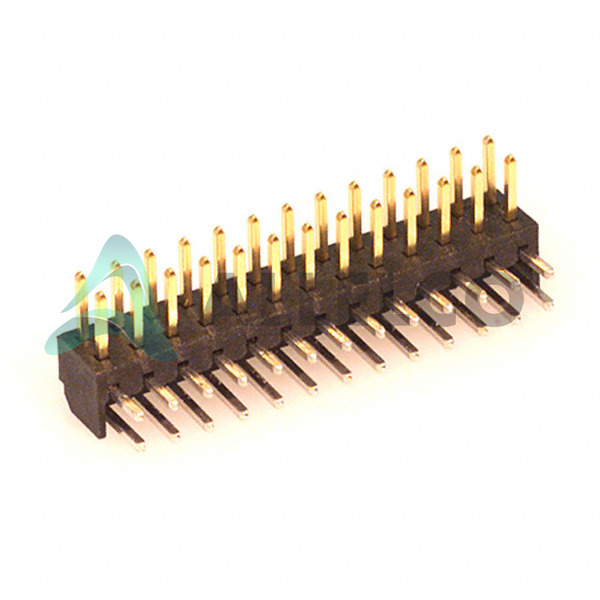

87760-2616 Tech Specifications
Affinity Medical Technologies - a Molex company - 87760-2616 technical specifications, attributes, parameters and parts with similar specifications to Affinity Medical Technologies - a Molex company - 87760-2616
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Molex |
|
| Voltage Rating |
- |
|
| Termination |
Solder |
|
| Style |
Board to Board or Cable |
|
| Shrouding |
Unshrouded |
|
| Series |
Milli-Grid 87760 |
|
| Row Spacing - Mating |
0.079" (2.00mm) |
|
| Pitch - Mating |
0.079" (2.00mm) |
|
| Packaging |
Tray |
|
| Overall Contact Length |
- |
|
| Other Names |
0877602616
87760-2616-TR200
87760-2616-TR400
877602616
WM18623 |
|
| Operating Temperature |
- |
|
| Number of Rows |
2 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
26 |
|
| Mounting Type |
Through Hole, Right Angle |
|
| Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Manufacturer Standard Lead Time |
23 Weeks |
|
| Product Attribute |
Attribute Value
| |
| Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|
| Insulation Material |
Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
|
| Insulation Height |
0.169" (4.30mm) |
|
| Insulation Color |
Black |
|
| Ingress Protection |
- |
|
| Features |
- |
|
| Fastening Type |
Push-Pull |
|
| Detailed Description |
Connector Header Through Hole, Right Angle 26 position 0.079" (2.00mm) |
|
| Current Rating |
- |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Square |
|
| Contact Material |
Phosphor Bronze |
|
| Contact Length - Post |
0.102" (2.60mm) |
|
| Contact Length - Mating |
0.157" (4.00mm) |
|
| Contact Finish Thickness - Post |
78.7µin (2.00µm) |
|
| Contact Finish Thickness - Mating |
15.0µin (0.38µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Header |
|
| Applications |
Automotive, General Purpose, Telecommunications |
|
