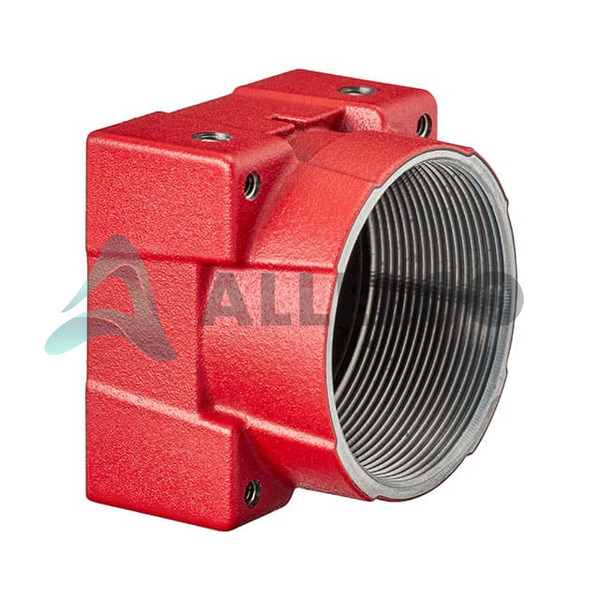

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

14214 - Allied Vision, Inc.

Name: Allied Vision, Inc. 14214
Brand: Allied Vision, Inc.
SKU: 14214
Price: 251.903 USD
Availability: InStock
Rating: 5 (4 reviews)

Manufacturer Part Number: 14214

Manufacturer: Allied Vision

Allelco Part Number: 98D-14214

Warranty: 1 Year Allelco Warranty - Find out more

Stock Status:: 42,104 pcs available, New & Original

Parts Description: CAMERA COLOR C-MOUNT OPEN

Package: Module

Data sheet: 14214.pdf

Datasheets
14214.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 42104

Unit Price: $664.501
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$664.501	$664.50
200+	$265.141	$53,028.20
500+	$256.28	$128,140.00
1000+	$251.903	$251,903.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Specifications

14214 Tech Specifications
Allied Vision, Inc. - 14214 technical specifications, attributes, parameters and parts with similar specifications to Allied Vision, Inc. - 14214

Product Attribute	Attribute Value
Manufacturer	Allied Vision
Type	CMOS
Supplier Device Package	Module
Shutter	Global
Series	Alvium 1800 C-040c
Sensor	IMX287
Resolution	728 x 544

Product Attribute	Attribute Value
Pixel Size	6.9µm x 6.9µm
Package / Case	Module
Package	Bulk
Lens Mount	C
Interface	CSI-2
Frames per Second	278
Color	RGB

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8525.89.5050

Frequently Asked Questions(FAQ)

How does the Allied Vision 14214 camera perform in low-light conditions compared to standard industrial CMOS sensors, and what design considerations are necessary for reliable operation at ISO 1000?: The 14214 leverages Sony’s IMX287 sensor with a 6.9 µm pixel pitch and global shutter architecture, enabling consistent image capture across varying illumination levels. At ISO 1000, the sensor maintains acceptable SNR due to its large full-well capacity relative to pixel area, but dynamic range is limited by read noise at high gain settings. Unlike rolling-shutter alternatives, the global shutter prevents motion artifacts during long exposures, which is critical for applications such as precision inspection under controlled lighting. Designers should account for thermal noise accumulation during extended integration times and ensure proper heat dissipation from the module package to avoid dark current drift.

What are the key differences between the 14214 and similar C-mount cameras using IMX250 or IMX253 sensors in terms of resolution, frame rate, and interface compatibility?: The 14214 uses the IMX287 sensor delivering 728x544 resolution at up to 278 fps via CSI-2, whereas IMX250-based systems typically offer 5 MP at lower frame rates (e.g., ~60 fps) with LVDS or Camera Link interfaces. IMX253 variants support higher resolutions (e.g., 12 MP) but often require dual-link transmission and consume more power. In contrast, the 14214’s compact CSI-2 output simplifies integration with embedded vision platforms such as NVIDIA Jetson modules or Raspberry Pi Compute Modules, reducing PCB complexity and BOM cost. This makes the 14214 preferable for space-constrained, power-efficient edge-processing applications.

Can the Allied Vision 14214 be used in harsh environmental conditions, and how do its RoHS compliance and MSL rating affect deployment in continuous production lines?: The 14214 features an MSL 1 classification, indicating it can be stored indefinitely without humidity barrier requirements—ideal for inventory stocking and just-in-time assembly in cleanroom environments. Its RoHS3 compliance ensures adherence to EU regulations without exemptions, facilitating global OEM adoption. However, while the module itself is robust, external optical components like lenses and filters may degrade under UV exposure or condensation. For continuous operation in manufacturing settings, designers must verify that ambient temperature stays within the operating range specified in the datasheet (typically 0°C to 50°C), as prolonged thermal cycling near limits can accelerate solder joint fatigue despite the sealed package.

Why might an engineer choose a global shutter over rolling shutter when integrating the 14214 into a high-speed inspection system, and what trade-offs exist in terms of data throughput?: Global shutter eliminates motion blur by exposing all pixels simultaneously, which is essential for inspecting fast-moving objects such as semiconductor wafers on conveyors traveling at several meters per second. Rolling shutters risk skew and distortion in these scenarios. However, global shuttering increases readout complexity and power consumption slightly. The 14214’s CSI-2 interface must sustain 278 fps × 728 × 544 × 12 bits ≈ 1.4 Gbps, demanding careful attention to PHY layer timing and buffer management. Engineers should validate host processor bandwidth capabilities early to avoid dropped frames during sustained capture sessions.

Does the 14214 support programmable gain and exposure settings, and how do these parameters interact with the sensor’s dynamic range and noise performance?: Yes, the 14214 allows software-controlled analog and digital gain adjustment, along with variable electronic shutter speeds down to sub-microsecond durations. Higher gains amplify both signal and noise, compressing effective dynamic range. For instance, doubling the gain may reduce usable DR by approximately 6 dB. Optimal performance occurs near unity gain with moderate exposure times; however, very short exposures (<10 µs) increase read noise dominance, degrading SNR. Designers should profile gain-exposure combinations empirically when balancing speed and fidelity in variable lighting environments.

What are the implications of using the 14214 in a multi-camera configuration, particularly regarding synchronization and bandwidth allocation over CSI-2?: While each 14214 streams independently over separate CSI-2 lanes, true hardware synchronization requires external triggers or shared clock signals—not natively supported by the sensor alone. Without synchronization, temporal misalignment between frames can cause stitching errors in stereo vision or motion analysis. Bandwidth-wise, two 14214 units could saturate a single CSI-2 channel (~1.5 Gbps typical), necessitating multiple hosts or multiplexed interfaces. Practical deployments often use FPGA-based trigger distribution or time-stamping to coordinate capture events, adding design overhead but preserving accuracy.

How does the 6.9 µm pixel size influence depth-of-field and light-gathering capability compared to smaller-pixel alternatives like 3.45 µm sensors?: Larger pixels collect more photons per unit area, improving quantum efficiency and SNR—especially beneficial in dim lighting. The 6.9 µm pitch also relaxes depth-of-field constraints, allowing greater tolerance for defocus in close-range imaging tasks like component alignment. Smaller pixels (e.g., 3.45 µm) enable higher spatial resolution but suffer from reduced sensitivity and increased crosstalk. For the 14214’s target resolution (728x544), the larger pixel strikes a balance suitable for moderate-detail inspection where illumination control is feasible, avoiding the need for aggressive magnification that would shrink DOF further.

Is the 14214 compatible with third-party C-mount lenses, and what calibration steps are recommended before deploying it in metrology-grade applications?: Yes, the C-mount flange distance (17.526 mm) allows broad lens interchangeability. However, mechanical tolerances and coating variations across manufacturers introduce vignetting, chromatic aberration, and focus shift. Before high-accuracy metrology use, engineers must perform geometric calibration using checkerboard patterns to correct for lens distortion (typically <1 pixel RMS error achievable). Additionally, flat-field correction should be applied to compensate for intensity falloff at corners—common with fast apertures. Failure to calibrate may lead to measurement errors exceeding ±0.1% of field size in precision gauging applications.

What role does the Alvium 1800 series platform play in ensuring firmware stability and long-term availability for the 14214?: The Alvium 1800 series represents a unified hardware and software ecosystem designed for industrial longevity. The 14214 benefits from standardized driver APIs, over-the-air update capabilities, and cross-model compatibility—reducing revalidation effort when scaling designs. Allied Vision commits to five years of product lifecycle support for this line, including firmware patches and documentation updates. This predictability is crucial for medical device or aerospace OEMs requiring certification traceability beyond typical consumer-grade timelines.

Can the 14214 operate without an external illuminator, and under what lighting conditions does it achieve optimal performance?: It can function passively under bright ambient light (e.g., daylight or LED panels), but optimal SNR occurs with diffuse, uniform illumination matching the scene’s spectral content. Since it captures RGB color data, white balance accuracy depends on consistent color temperature (ideally 5600K–6500K). In low-light scenarios, active illumination becomes necessary; however, infrared-rich sources can saturate red channels due to silicon absorption characteristics. Designers should match illuminant spectrum to the sensor’s QE curve peaks (~450 nm blue, ~550 nm green, ~650 nm red) for balanced response.

Parts with Similar Specifications

The three parts on the right have similar specifications to Allied Vision, Inc. 14214

Product Attribute
Part Number	14214	1421370	142140	14214-06
Manufacturer	Allied Vision, Inc.	Phoenix Contact	Amphenol RF	Iskra
Lens Mount	C	-	-	-
Sensor	IMX287	-	-	-
Frames per Second	278	-	-	-
Supplier Device Package	Module	-	-	-
Package / Case	Module	-	-	Radial
Interface	CSI-2	-	-	-
Series	Alvium 1800 C-040c	HEAVYCON® B	-	KNB1560
Pixel Size	6.9µm x 6.9µm	-	-	-
Color	RGB	-	-	-
Shutter	Global	-	-	-
Type	CMOS	-	-	-
Resolution	728 x 544	-	-	-
Package	Bulk	Bulk	Bag	Bulk

14214 Datasheet PDF

Download 14214 pdf datasheets and Allied Vision, Inc. documentation for 14214 - Allied Vision, Inc..

Datasheets: 14214.pdf
