HomeProductsConnectors, InterconnectsCard Edge Connectors - Edgeboard Connectors10128788-004RLF

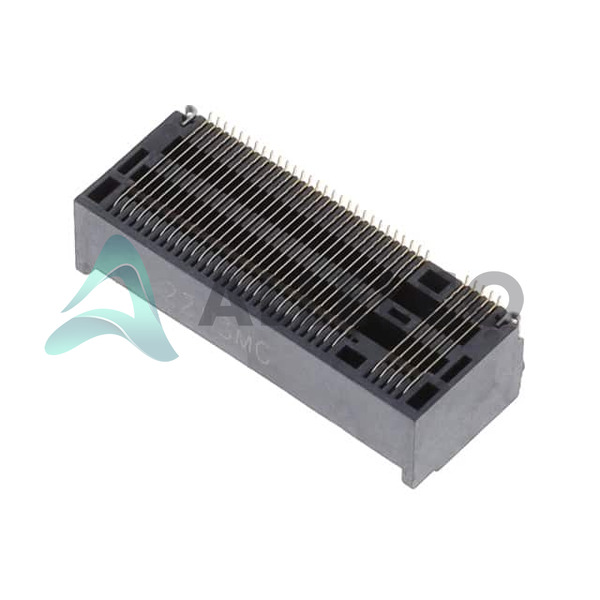

10128788-004RLF Image
10128788-004RLF Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

10128788-004RLF - Amphenol ICC (FCI)

Manufacturer Part Number
10128788-004RLF
Manufacturer
Amphenol Aorora
Allelco Part Number
98D-10128788-004RLF
Warranty
1 Year Allelco Warranty - Find out more
Stock Status:
47,803 pcs available, New & Original
Parts Description
CONN M.2 FMALE 67POS 0.020 GOLD
Package
Tape & Reel (TR)
Data sheet
10128788-004RLF.pdf

PCN Design/Specification

M.2 Connectors Height 18/Jun/2015.pdf
RoHs Status
RoHS Compliant
Compare
Our certification
In stock: 47803
  • Unit Price: $1.666
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.666 $1.67
200+ $0.645 $129.00
500+ $0.622 $311.00
1400+ $0.611 $855.40
The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Specifications

10128788-004RLF Tech Specifications
Amphenol ICC (FCI) - 10128788-004RLF technical specifications, attributes, parameters and parts with similar specifications to Amphenol ICC (FCI) - 10128788-004RLF

Product Attribute Attribute Value
Manufacturer Amphenol Aorora
Termination Solder
Series HPCE®
Read Out Dual
Pitch 0.020" (0.50mm)
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 80°C
Number of Rows 2
Number of Positions/Bay/Row -
Number of Positions 67
Mounting Type Surface Mount, Right Angle
Material - Insulation Thermoplastic
Product Attribute Attribute Value
Gender Female
Flange Feature -
Features Board Guide
Contact Type -
Contact Material Copper Alloy
Contact Finish Thickness 15.0µin (0.38µm)
Contact Finish Gold
Color Black
Card Type M.2 (NGFF) Mini Card
Card Thickness 0.031" (0.79mm)
Base Product Number 10128788

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.8000

Parts with Similar Specifications

The three parts on the right have similar specifications to Amphenol ICC (FCI) 10128788-004RLF

Product Attribute 10128786-004RLF 10128787-004RLF 10128788-001RLF 10128787-005RLF
Part Number 10128786-004RLF 10128787-004RLF 10128788-001RLF 10128787-005RLF
Manufacturer Amphenol ICC (FCI) Amphenol ICC (FCI) Amphenol ICC (FCI) Amphenol ICC (FCI)
Number of Positions/Bay/Row - - - -
Contact Material - - - -
Gender - - - -
Contact Type - - - -
Number of Positions - - - -
Termination - - - -
Series - - - -
Contact Finish - - - -
Number of Rows - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Color - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Features - - - Simultaneous Sampling
Contact Finish Thickness - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Pitch - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Material - Insulation - - - -
Card Thickness - - - -
Read Out - - - -
Card Type - - - -
Flange Feature - - - -
