Specifications
082-5378-RFX Tech Specifications
Amphenol RF - 082-5378-RFX technical specifications, attributes, parameters and parts with similar specifications to Amphenol RF - 082-5378-RFX
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Amphenol Connex (Amphenol RF) |
|
| Voltage Rating |
1500 V |
|
| Shield Termination |
Crimp |
|
| Series |
- |
|
| Package |
Bulk |
|
| Operating Temperature |
-65°C ~ 165°C |
|
| Number of Ports |
1 |
|
| Mounting Type |
Panel Mount |
|
| Mounting Feature |
Bulkhead - Front Side Nut |
|
| Mating Cycles |
500 |
|
| Insertion Loss |
0.15dB |
|
| Ingress Protection |
Weatherproof |
|
| Includes |

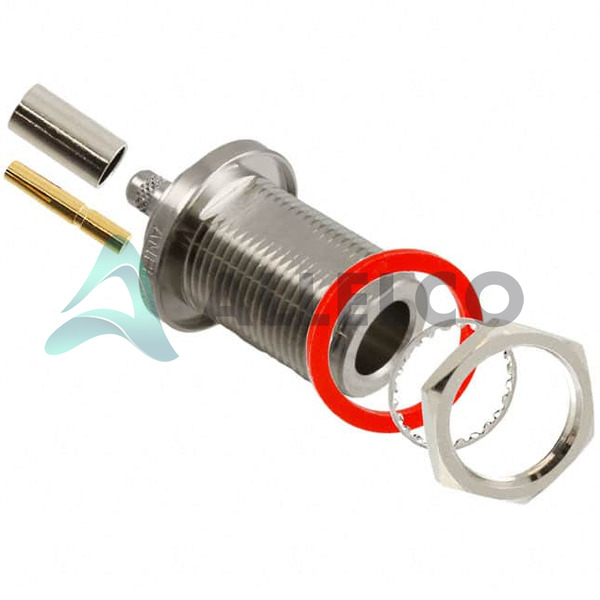

6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut, 1 Spacer |
|
| Impedance |
50Ohm |
|
| Product Attribute |
Attribute Value
| |
| Housing Color |
Silver |
|
| Frequency - Max |
11 GHz |
|
| Features |
- |
|
| Fastening Type |
Threaded |
|
| Dielectric Material |
Polytetrafluoroethylene (PTFE) |
|
| Contact Termination |
Crimp |
|
| Connector Type |
Jack, Female Socket |
|
| Connector Style |
N Type |
|
| Center Contact Plating |
Gold |
|
| Center Contact Material |
Phosphor Bronze |
|
| Cable Group |
RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907 |
|
| Body Material |
Brass |
|
| Body Finish |
Nickel |
|
| Base Product Number |
082-537 |
|
