HomeProductsIsolatorsOptoisolators - Logic OutputACPL-K24L-500E

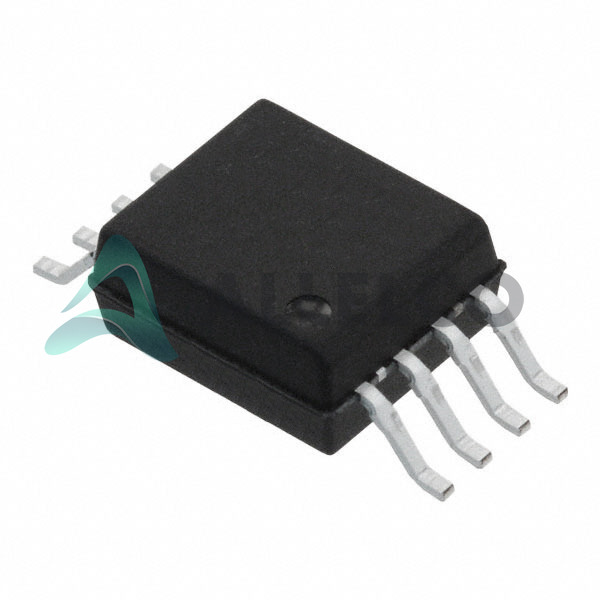

ACPL-K24L-500E Image
ACPL-K24L-500E Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

ACPL-K24L-500E - Broadcom Limited

Manufacturer Part Number
ACPL-K24L-500E
Manufacturer
Avago Technologies (Broadcom)
Allelco Part Number
98D-ACPL-K24L-500E
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
OPTOISO 5KV 2CH PUSH PULL 8SO
Package
8-SO Stretched
Data sheet
1.ACPL-K24L-500E.pdf ...
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 46513
  • Unit Price: $4.203
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $4.203 $4.20
200+ $1.677 $335.40
500+ $1.621 $810.50
1000+ $1.594 $1,594.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

ACPL-K24L-500E Tech Specifications
Broadcom Limited - ACPL-K24L-500E technical specifications, attributes, parameters and parts with similar specifications to Broadcom Limited - ACPL-K24L-500E

Product Attribute Attribute Value
Manufacturer Avago Technologies (Broadcom)
Voltage - Supply 2.7V ~ 5.5V
Voltage - Isolation 5000Vrms
Voltage - Forward (Vf) (Typ) 1.5V
Supplier Device Package 8-SO Stretched
Series -
Rise / Fall Time (Typ) 11ns, 11ns
Propagation Delay tpLH / tpHL (Max) 250ns, 250ns
Package / Case 8-SOIC (0.268", 6.81mm Width)
Package Tape & Reel (TR)
Output Type Push-Pull, Totem Pole
Product Attribute Attribute Value
Operating Temperature -40°C ~ 105°C
Number of Channels 2
Mounting Type Surface Mount
Inputs - Side 1/Side 2 2/0
Input Type DC
Data Rate 5MBd
Current - Output / Channel 10 mA
Current - DC Forward (If) (Max) 8mA
Common Mode Transient Immunity (Min) 25kV/µs
Base Product Number ACPL-K24

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000

Parts with Similar Specifications

The three parts on the right have similar specifications to Broadcom Limited ACPL-K24L-500E

Product Attribute ACPL-K24L-500E ACPL-K24L-060E ACPL-K24L-560E ACPL-K24L-000E
Part Number ACPL-K24L-500E ACPL-K24L-060E ACPL-K24L-560E ACPL-K24L-000E
Manufacturer Broadcom Limited Broadcom Limited Broadcom Limited Broadcom Limited
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Common Mode Transient Immunity (Min) 25kV/µs 25kV/µs 25kV/µs 25kV/µs
Data Rate 5MBd 5MBd 5MBd 5MBd
Voltage - Isolation 5000Vrms 5000Vrms 5000Vrms 5000Vrms
Number of Channels 2 2 2 2
Propagation Delay tpLH / tpHL (Max) 250ns, 250ns 250ns, 250ns 250ns, 250ns 250ns, 250ns
Base Product Number ACPL-K24 ACPL-K24 ACPL-K24 ACPL-K24
Output Type Push-Pull, Totem Pole Push-Pull, Totem Pole Push-Pull, Totem Pole Push-Pull, Totem Pole
Voltage - Supply 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V
Series - - - -
Voltage - Forward (Vf) (Typ) 1.5V 1.5V 1.5V 1.5V
Current - DC Forward (If) (Max) 8mA 8mA 8mA 8mA
Supplier Device Package 8-SO Stretched 8-SO Stretched 8-SO Stretched 8-SO Stretched
Inputs - Side 1/Side 2 2/0 2/0 2/0 2/0
Package / Case 8-SOIC (0.268", 6.81mm Width) 8-SOIC (0.268", 6.81mm Width) 8-SOIC (0.268", 6.81mm Width) 8-SOIC (0.268', 6.81mm Width)
Package Tape & Reel (TR) Tube Tube Tube
Rise / Fall Time (Typ) 11ns, 11ns 11ns, 11ns 11ns, 11ns 11ns, 11ns
Operating Temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
Input Type DC DC DC DC
Current - Output / Channel 10 mA 10 mA 10 mA 10 mA

ACPL-K24L-500E Datasheet PDF

Download ACPL-K24L-500E pdf datasheets and Broadcom Limited documentation for ACPL-K24L-500E - Broadcom Limited.

PCN Design/Specification
Mult Device Design Changes 10/Nov/2015.pdf Molding Chg 08/Feb/2016.pdf
PCN Packaging
Marking/Labeling Revision B 14/Jan/2014.pdf
