Manufacturer Part Number

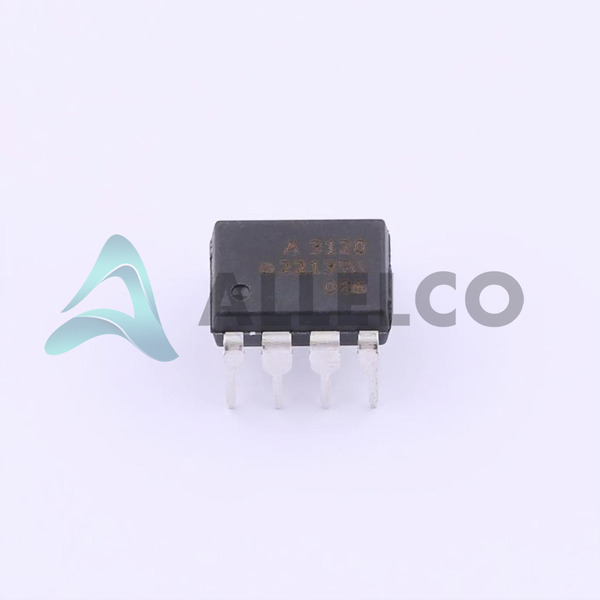

HCPL-3120-000E
Manufacturer
Avago Technologies (Broadcom)
Introduction
High-speed, high-voltage, quad-channel, optically-coupled gate driver
Product Features and Performance
1 channel
Rise/fall time: 100ns, 100ns
Current DC forward (If) (Max): 25mA
Voltage isolation: 3750Vrms
Voltage forward (Vf) (Typ): 1.5V
Current output high, low: 2A, 2A
Current peak output: 2.5A
Voltage output supply: 15V ~ 30V
Pulse width distortion (Max): 300ns
Propagation delay tpLH / tpHL (Max): 500ns, 500ns
Common mode transient immunity (Min): 25kV/s
Product Advantages
Optically-coupled design provides high voltage isolation
High-speed switching capability
High output current drive
Wide supply voltage range
Key Technical Parameters
Operating temperature: -40°C ~ 100°C
Packaging: 8-DIP (0.300', 7.62mm)
Number of channels: 1
Mounting type: Through hole
Quality and Safety Features
RoHS3 compliant
Approved by CSA and UR
Compatibility
Suitable for high-speed, high-voltage gate driver applications
Application Areas
Industrial motor drives
Power supplies
Welding equipment
Lighting control
Other high-voltage, high-speed switching applications
Product Lifecycle
This product is currently in production
Replacement or upgrade options may be available from the manufacturer
Key Reasons to Choose This Product
Reliable optical isolation for high voltage applications
Fast switching speed and high output current capability
Wide operating voltage range
Compact through-hole package
Compliance with safety and environmental standards
