Specifications

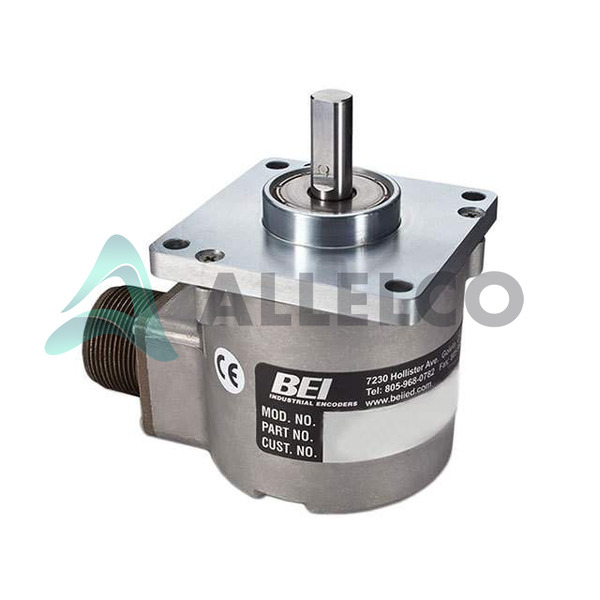

H25D-SS-2048-ABZC-28V/5-SM18 Tech Specifications
BEI Sensors - H25D-SS-2048-ABZC-28V/5-SM18 technical specifications, attributes, parameters and parts with similar specifications to BEI Sensors - H25D-SS-2048-ABZC-28V/5-SM18
| Product Attribute |
Attribute Value
| |
| Manufacturer |
BEI Sensors / Sensata Technologies |
|
| Voltage - Supply |
5 V ~ 28 V |
|
| Termination Style |
Connector |
|
| Series |
H25 |
|
| Rotational Life (Cycles Min) |
200M |
|
| Pulses per Revolution |
2048 |
|
| Output Type |
Quadrature (Incremental) |
|
| Other Names |
01002-9418
01002-9418-ND |
|
| Orientation |
User Selectable |
|
| Product Attribute |
Attribute Value
| |
| Mounting Type |
Chassis Mount |
|
| Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
|
| Manufacturer Standard Lead Time |
4 Weeks |
|
| Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|
| Encoder Type |
Optical |
|
| Detent |
No |
|
| Built in Switch |
No |
|
| Actuator Type |
Shaft |
|
