Specifications

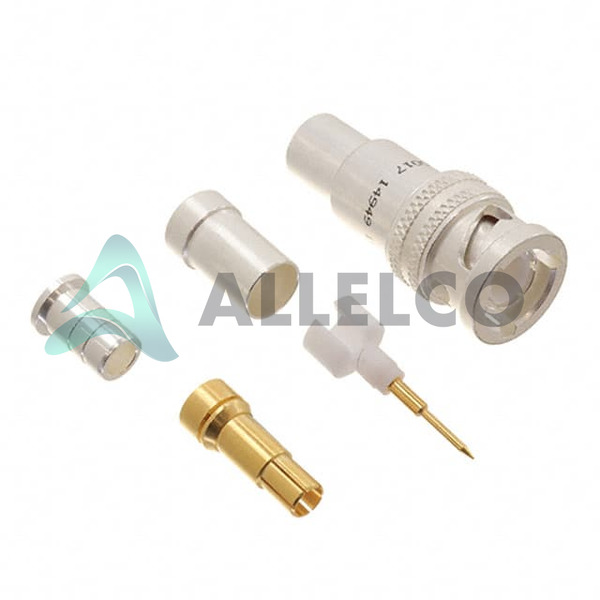

M49142/03-0017 Tech Specifications
Cinch Connectivity Solutions Trompeter - M49142/03-0017 technical specifications, attributes, parameters and parts with similar specifications to Cinch Connectivity Solutions Trompeter - M49142/03-0017
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Bel |
|
| Shield Termination |
Crimp |
|
| Series |
70/370 |
|
| Package |
Bulk |
|
| Operating Temperature |
- |
|
| Number of Ports |
1 |
|
| Mounting Type |
Free Hanging (In-Line) |
|
| Mounting Feature |
- |
|
| Mating Cycles |
- |
|
| Insertion Loss |
- |
|
| Ingress Protection |
- |
|
| Includes |
- |
|
| Impedance |
- |
|
| Housing Color |
Silver |
|
| Product Attribute |
Attribute Value
| |
| Frequency - Max |
500 MHz |
|
| Features |
- |
|
| Fastening Type |
Bayonet Lock |
|
| Dielectric Material |
Polytetrafluoroethylene (PTFE) |
|
| Contact Termination |
Crimp |
|
| Connector Type |
Plug, Male Pin (Concentric) |
|
| Connector Style |
TRB, Twinaxial/Triaxial |
|
| Center Contact Plating |
Gold |
|
| Center Contact Material |
Brass |
|
| Cable Group |
- |
|
| Body Material |
Brass |
|
| Body Finish |
Silver |
|
| Base Product Number |
M49142/03 |
|
