Specifications

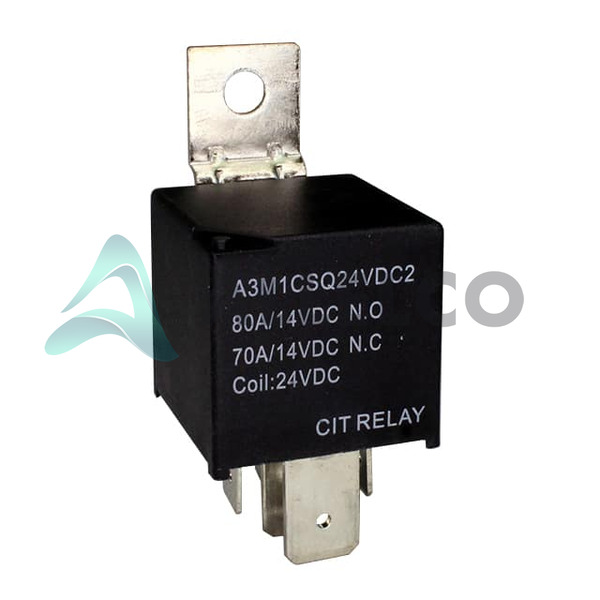

A3M1CSQ24VDC2 Tech Specifications
CIT Relay and Switch - A3M1CSQ24VDC2 technical specifications, attributes, parameters and parts with similar specifications to CIT Relay and Switch - A3M1CSQ24VDC2
| Product Attribute |
Attribute Value
| |
| Manufacturer |
CIT Relay and Switch |
|
| Termination Style |
Quick Connect - Multiple Sizes |
|
| Switching Voltage |
75VDC - Max |
|
| Series |
A3M |
|
| Release Time |
5 ms |
|
| Package |
Tray |
|
| Operating Temperature |
-40°C ~ 125°C |
|
| Operate Time |
7 ms |
|
| Must Release Voltage |
2.4 VDC |
|
| Must Operate Voltage |
16.8 VDC |
|
| Mounting Type |
Chassis Mount |
|
| Product Attribute |
Attribute Value
| |
| Features |
Sealed - Fully |
|
| Contact Rating (Current) |
80 A |
|
| Contact Material |
Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
| Contact Form |
SPDT (1 Form C) |
|
| Coil Voltage |
24VDC |
|
| Coil Type |
Non Latching |
|
| Coil Resistance |
320 Ohms |
|
| Coil Power |
1.8W |
|
| Coil Current |
75 mA |
|
| Base Product Number |
A3M1CSQ |
|
